Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30000 | ₹ 20.08000 | ₹ 6,02,400.00 |
| 15000 | ₹ 20.89000 | ₹ 3,13,350.00 |
| 9000 | ₹ 21.69000 | ₹ 1,95,210.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 1 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | High Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | - | |
| Output Load Voltage | 2.7V ~ 30V | |
| Core Supply Voltage | Not Required | |
| Peak Output Current | 1.5A | |
| Typical On Resistance | 140mOhm | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | Load Discharge, Status Flag | |
| Error Safeguard Features | Over Temperature, Over Voltage | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

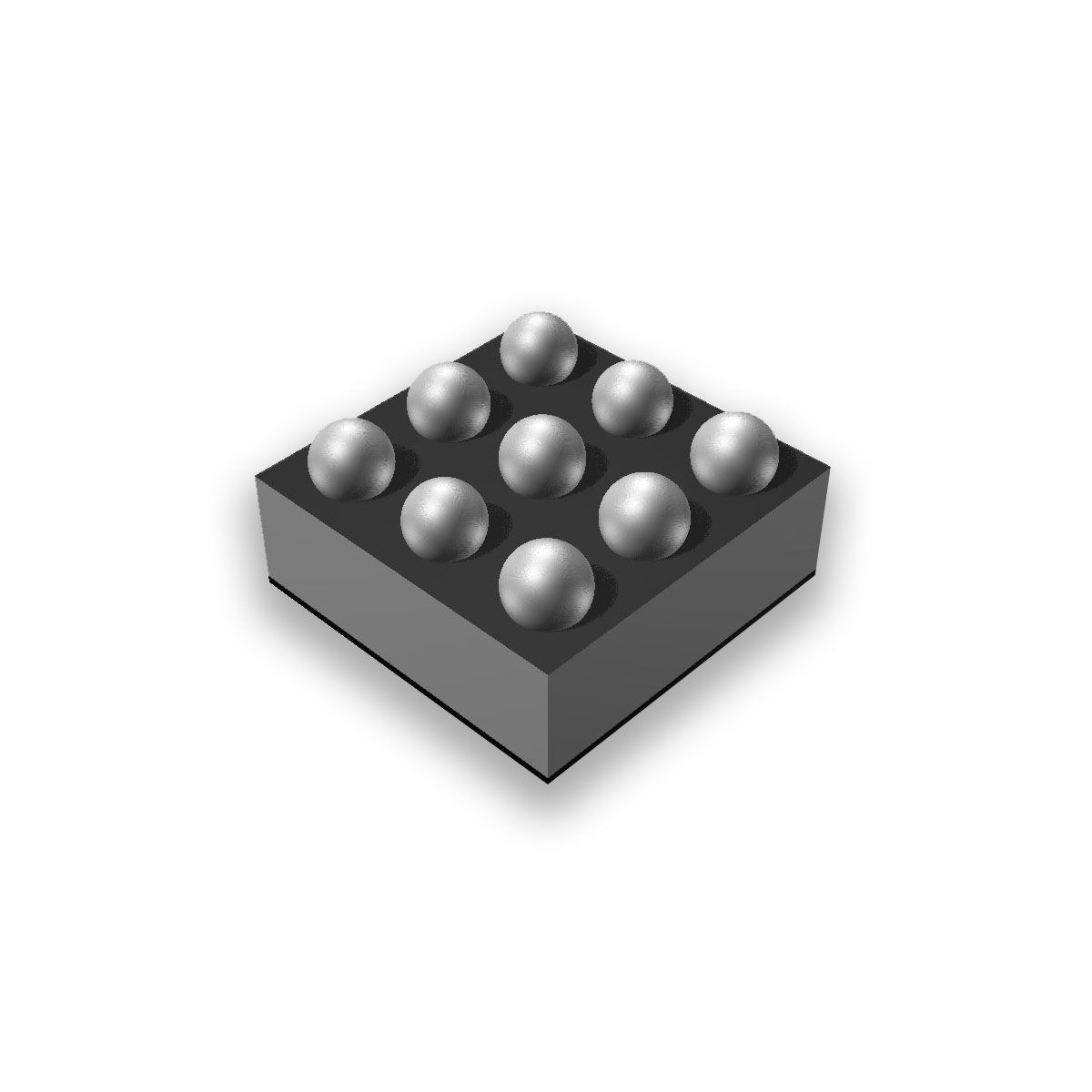

| Vendor Package Type | 9-WLCSP (1.33x1.33) | |
| Component Housing Style | 9-WFBGA, WLCSP |
Description
Supplies peak output current defined as 1.5A. Features fault protection capabilities quantified at Over Temperature, Over Voltage. Equipped with features categorized as Load Discharge, Status Flag. Configured with Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 140mOhm for effective conduction. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 9-WFBGA, WLCSP that offers mechanical and thermal protection. Type of package 9-WLCSP (1.33x1.33) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 140mOhm for MOSFET functionality. Supplier package type 9-WLCSP (1.33x1.33) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 2.7V ~ 30V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
