Description

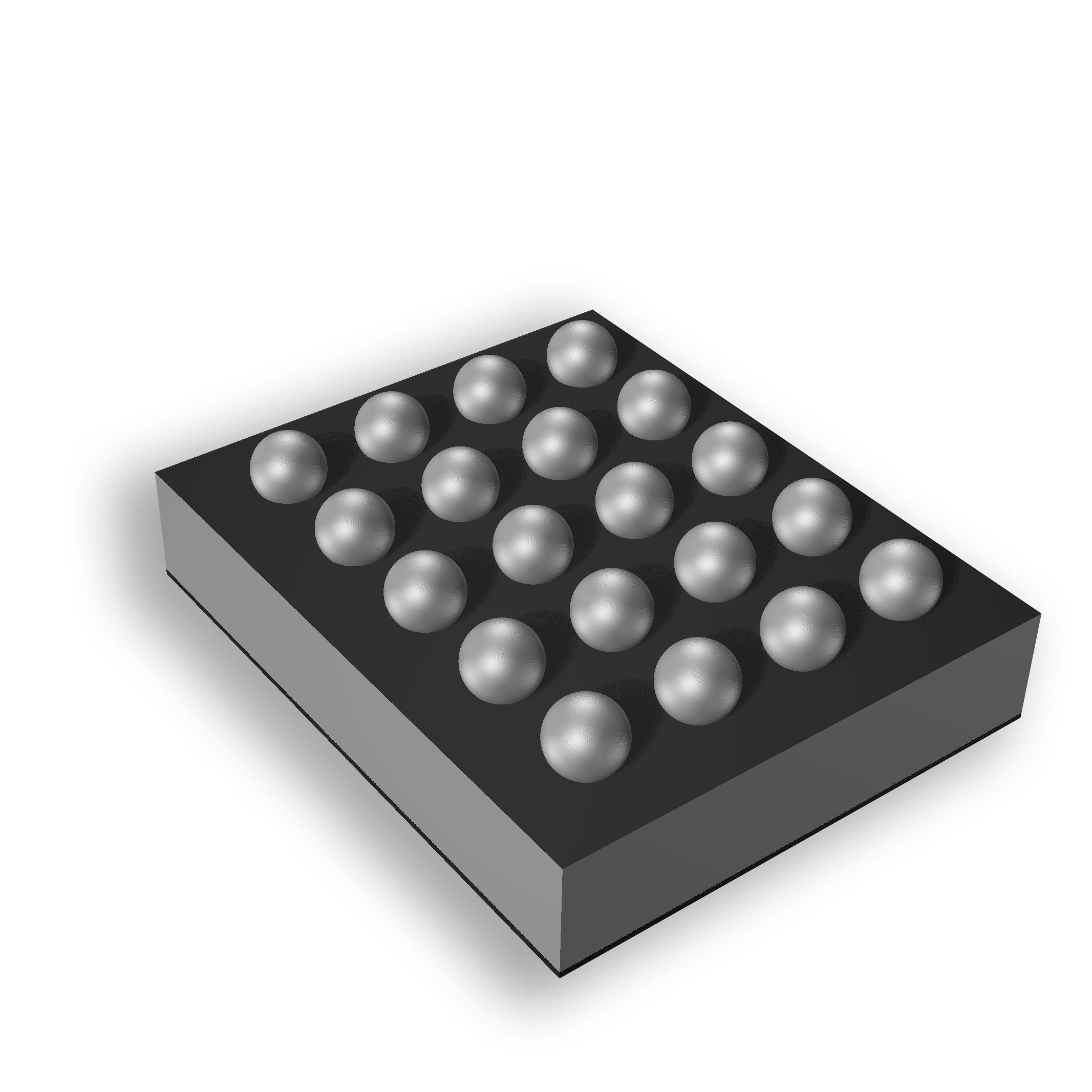

Supplies peak output current defined as 6.5A. Features fault protection capabilities quantified at Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO. Equipped with features categorized as Auto Restart, Load Discharge, Power Good, Slew Rate Controlled, Status Flag. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 20mOhm for effective conduction. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 20-WFBGA, WLCSP that offers mechanical and thermal protection. Type of package 20-WLCSP54 (2.71x2.16) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 20mOhm for MOSFET functionality. Supplier package type 20-WLCSP54 (2.71x2.16) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 3V ~ 23V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
