Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 9000 | ₹ 67.28000 | ₹ 6,05,520.00 |
| 6000 | ₹ 69.19000 | ₹ 4,15,140.00 |
| 3000 | ₹ 72.99000 | ₹ 2,18,970.00 |
| 1000 | ₹ 80.66000 | ₹ 80,660.00 |
| 500 | ₹ 86.80000 | ₹ 43,400.00 |
| 250 | ₹ 94.18000 | ₹ 23,545.00 |
| 100 | ₹ 106.26000 | ₹ 10,626.00 |
| 25 | ₹ 131.06000 | ₹ 3,276.50 |
| 10 | ₹ 153.08000 | ₹ 1,530.80 |
| 1 | ₹ 236.95000 | ₹ 236.95 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 233.18000 | ₹ 233.18 |
| 10 | ₹ 150.41000 | ₹ 1,504.10 |
| 25 | ₹ 129.05000 | ₹ 3,226.25 |
| 100 | ₹ 104.13000 | ₹ 10,413.00 |
| 250 | ₹ 92.56000 | ₹ 23,140.00 |
| 500 | ₹ 85.44000 | ₹ 42,720.00 |
| 1000 | ₹ 71.82000 | ₹ 71,820.00 |
| 4000 | ₹ 68.09000 | ₹ 2,72,360.00 |
| 8000 | ₹ 66.22000 | ₹ 5,29,760.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 1 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | High Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | On/Off | |
| Output Load Voltage | 0V ~ 35V | |
| Core Supply Voltage | 2.5V ~ 5.5V | |
| Peak Output Current | 3A | |
| Typical On Resistance | 27mOhm | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | Status Flag | |
| Error Safeguard Features | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

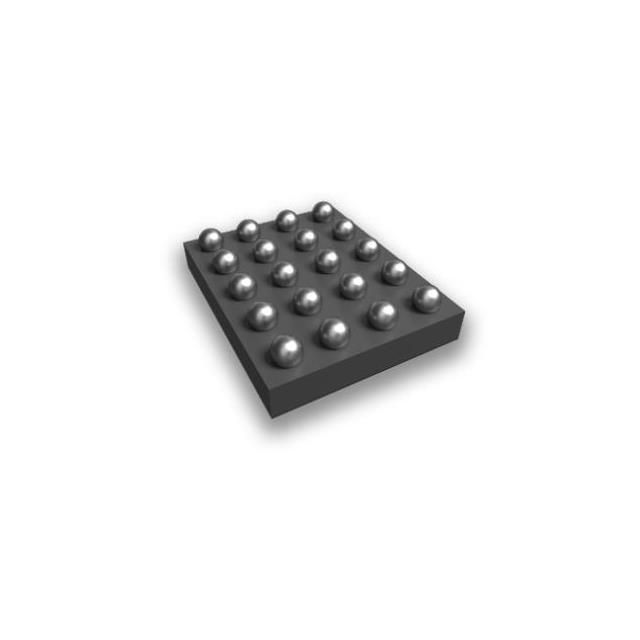

| Vendor Package Type | 20-WLCSP54 (2.49x1.99) | |
| Component Housing Style | 20-UFBGA, WLCSP |
Description
Supplies peak output current defined as 3A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO. Equipped with features categorized as Status Flag. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 27mOhm for effective conduction. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 20-UFBGA, WLCSP that offers mechanical and thermal protection. Type of package 20-WLCSP54 (2.49x1.99) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 27mOhm for MOSFET functionality. Supplier package type 20-WLCSP54 (2.49x1.99) for component selection. Voltage requirement 2.5V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 0V ~ 35V required for devices. Vcc/Vdd voltage supply 2.5V ~ 5.5V for electronic devices.
