Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TOPFET™ | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 1 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | Low Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | On/Off | |
| Output Load Voltage | 50V (Max) | |
| Core Supply Voltage | Not Required | |
| Peak Output Current | 8A | |
| Typical On Resistance | 68mOhm | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | - | |
| Error Safeguard Features | Current Limiting (Fixed), Over Temperature, Over Voltage | |
| Ambient Temp Range | 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Vendor Package Type | I2PAK | |

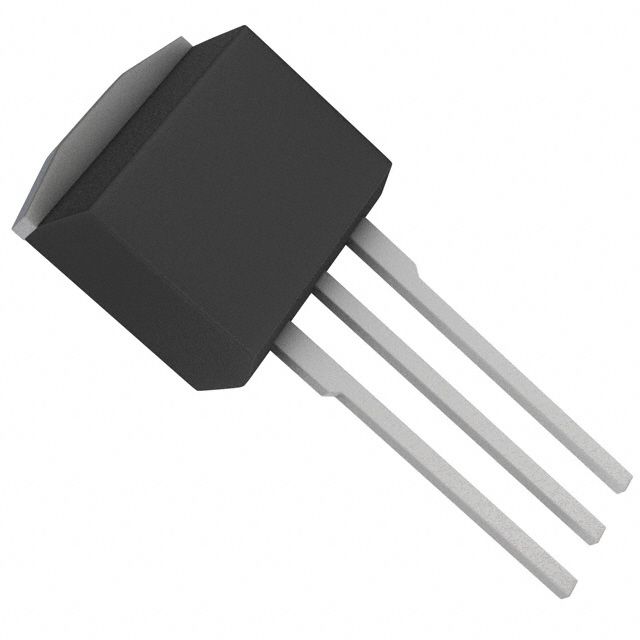

| Component Housing Style | TO-262-3 Long Leads, I2PAK, TO-262AA |
Description
Supplies peak output current defined as 8A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature, Over Voltage. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Through Hole for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 68mOhm for effective conduction. Temperature range 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences Low Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case TO-262-3 Long Leads, I2PAK, TO-262AA that offers mechanical and thermal protection. Type of package I2PAK that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 68mOhm for MOSFET functionality. Classification series for the product or component TOPFET™. Supplier package type I2PAK for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 50V (Max) required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
