Description

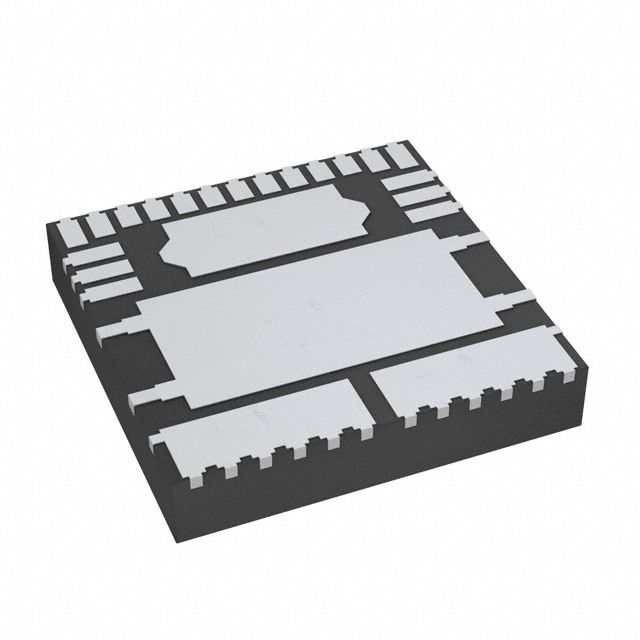

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supplies peak output current defined as 6A. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO. Equipped with features categorized as Internal PWM, Slew Rate Controlled, Watchdog Timer. Designed for SPI ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 2 for device connections. Resistance during the on-state 10mOhm (Max) for effective conduction. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 23-PowerQFN that offers mechanical and thermal protection. Type of package 23-PQFN (12x12) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 10mOhm (Max) for MOSFET functionality. Supplier package type 23-PQFN (12x12) for component selection. Voltage requirement 3V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Load voltage 8V ~ 36V required for devices. Vcc/Vdd voltage supply 3V ~ 5.5V for electronic devices.
