Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 16 | |
| Input to Output Ratio | 1:16 | |
| Output Setup Options | Low Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | SPI | |
| Output Load Voltage | 5V ~ 27V | |
| Core Supply Voltage | 1.5V ~ 3V | |
| Peak Output Current | 900mA | |
| Typical On Resistance | 550mOhm | |
| Entry Signal Category | - | |
| Key Product Highlights | PWM Input | |
| Error Safeguard Features | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | 32-SOIC | |

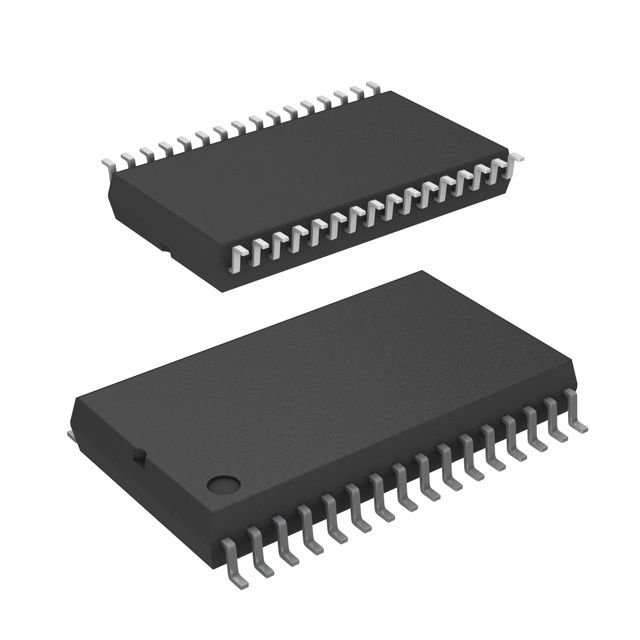

| Component Housing Style | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad |
Description
Supplies peak output current defined as 900mA. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage. Equipped with features categorized as PWM Input. Designed for SPI ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 16 for device connections. Resistance during the on-state 550mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences Low Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 32-BSSOP (0.295", 7.50mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 32-SOIC that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:16 for electrical or mechanical conversion. Mean Rds(on) 550mOhm for MOSFET functionality. Supplier package type 32-SOIC for component selection. Voltage requirement 1.5V ~ 3V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 5V ~ 27V required for devices. Vcc/Vdd voltage supply 1.5V ~ 3V for electronic devices.
