Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 4 | |
| Input to Output Ratio | 1:4 | |
| Output Setup Options | High Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | SPI | |
| Output Load Voltage | 6V ~ 20V | |
| Core Supply Voltage | 3V ~ 5.5V | |
| Peak Output Current | 6A | |
| Typical On Resistance | 35mOhm (Max) | |
| Entry Signal Category | - | |
| Key Product Highlights | Internal PWM, Slew Rate Controlled, Watchdog Timer | |
| Error Safeguard Features | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

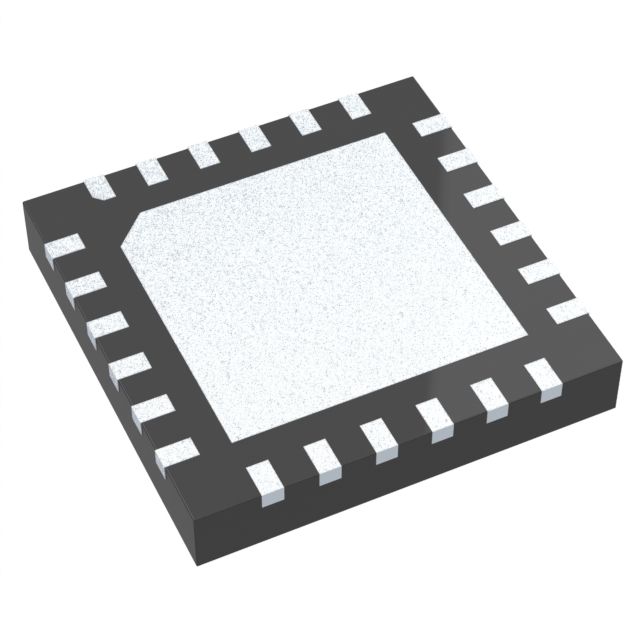

| Vendor Package Type | 24-PQFN (12x12) | |
| Component Housing Style | 24-PowerQFN |
Description
Supplies peak output current defined as 6A. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage. Equipped with features categorized as Internal PWM, Slew Rate Controlled, Watchdog Timer. Designed for SPI ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 4 for device connections. Resistance during the on-state 35mOhm (Max) for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 24-PowerQFN that offers mechanical and thermal protection. Type of package 24-PQFN (12x12) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:4 for electrical or mechanical conversion. Mean Rds(on) 35mOhm (Max) for MOSFET functionality. Supplier package type 24-PQFN (12x12) for component selection. Voltage requirement 3V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 6V ~ 20V required for devices. Vcc/Vdd voltage supply 3V ~ 5.5V for electronic devices.
