Description

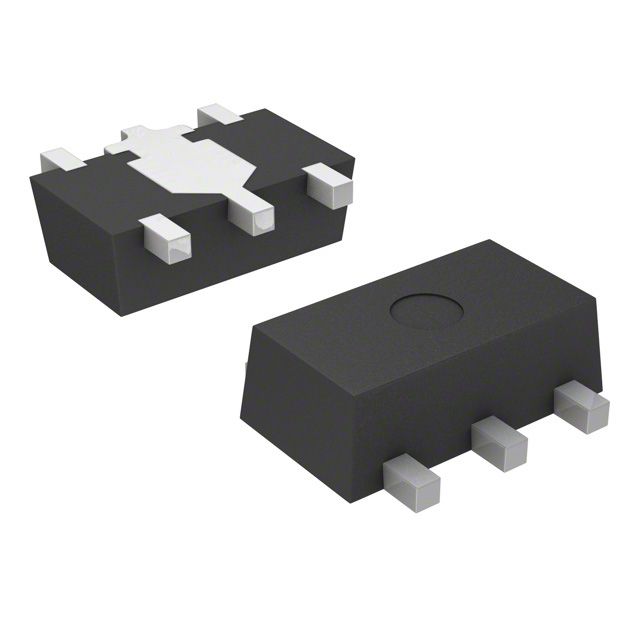

Supplies peak output current defined as 3A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 90mOhm for effective conduction. Temperature range -40°C ~ 105°C (TA) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type P-Channel for ensuring compatibility with output systems. Type of housing Case for safeguarding or transporting components. Style of the enclosure/case SOT-89-5/6 that offers mechanical and thermal protection. Type of package SOT-89-5 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 90mOhm for MOSFET functionality. Classification series for the product or component XC8114. Supplier package type SOT-89-5 for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 1.5V ~ 6V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
