Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Exit Signal Category | Transistor Driver | |
| Primary Function Mode | Step-Up, Step-Down | |
| Output Setup Options | Positive | |
| Circuit Topology Design | Buck, Boost | |
| Signal Output Quantity | 1 | |
| Power Phase Count | 1 | |
| Core Supply Voltage | 4.2V ~ 25V | |
| Switching Cycle Rate | 200kHz | |
| Maximum Duty Percentage | 90% | |
| Sync Rectification Mode | Yes | |
| Synchronization Signal | No | |
| Serial Communication Ports | - | |
| Adjustment Capabilities | Frequency Control, Soft Start | |
| Ambient Temp Range | 0°C ~ 70°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

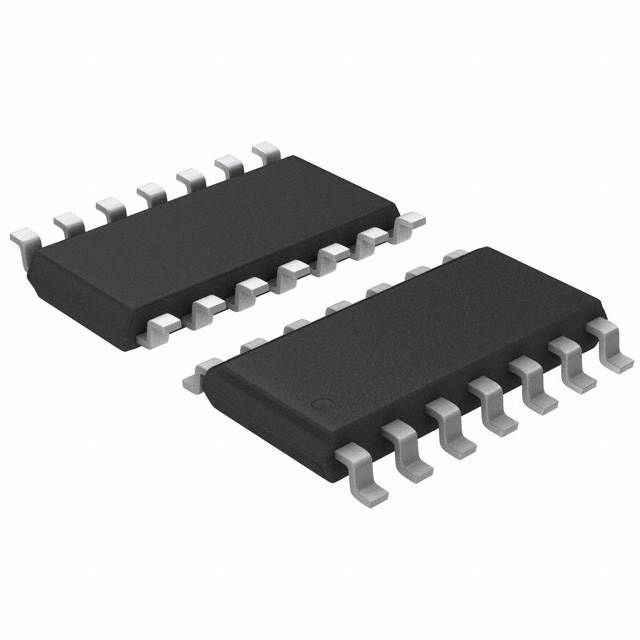

| Component Housing Style | 14-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 14-SOIC |
Description
Incorporates clock synchronization features rated at No. Is equipped with control features recognized as Frequency Control, Soft Start. Allows the maximum duty cycle rated at 90%. Engineered for a 200kHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Up, Step-Down features for versatile component usage. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range 0°C ~ 70°C (TA) for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Number 1 for scenarios that need multi-phase output. Type Transistor Driver for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 14-SOIC that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 14-SOIC for component selection. Voltage requirement 4.2V ~ 25V for electrical specifications. The ability for synchronous rectification Yes to improve energy efficiency. Layout design Buck, Boost for electrical systems or configurations. Vcc/Vdd voltage supply 4.2V ~ 25V for electronic devices.
