Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TinyBoost® | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Primary Function Mode | Step-Up | |
| Output Setup Options | Positive | |
| Circuit Topology Design | Boost | |
| Exit Signal Category | Fixed | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 2.7V | |
| Maximum Input Voltage | 4.5V | |
| Minimum Fixed Output | 5V | |
| Peak Output Voltage | - | |
| Output Delivery Amps | 1A | |
| Switching Cycle Rate | 2.3MHz | |
| Sync Rectification Mode | Yes | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

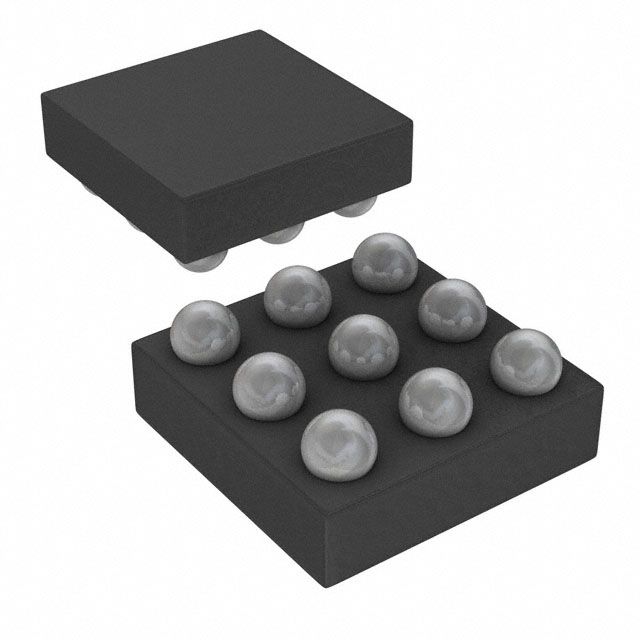

| Component Housing Style | 9-UFBGA, WLCSP | |
| Vendor Package Type | 9-WLCSP (1.21x1.21) |
Description
Yields output current measured at 1A. Engineered for a 2.3MHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Up features for versatile component usage. The input voltage established at 2.7V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Type Fixed for ensuring compatibility with output systems. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 9-UFBGA, WLCSP that offers mechanical and thermal protection. Type of package 9-WLCSP (1.21x1.21) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component TinyBoost®. Supplier package type 9-WLCSP (1.21x1.21) for component selection. The ability for synchronous rectification Yes to improve energy efficiency. Layout design Boost for electrical systems or configurations. Maximum input voltage 4.5V for safeguarding. Minimum input voltage 2.7V for operation. The lowest or steady output voltage 5V for circuits.
