Description

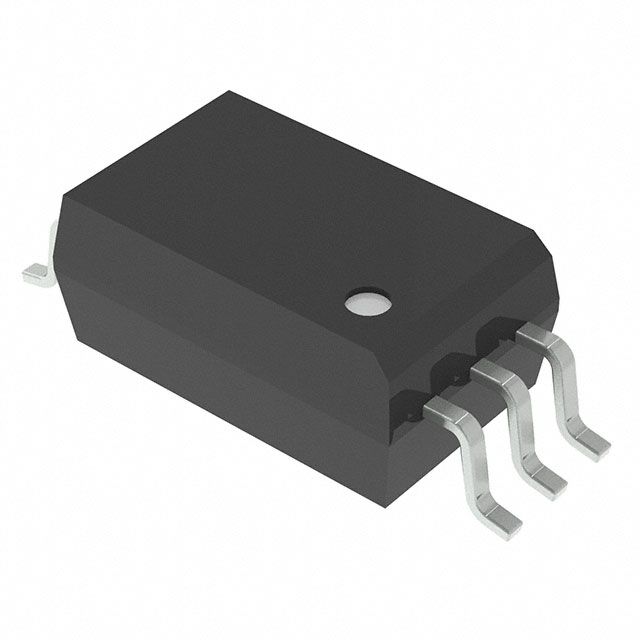

Complies with the criteria of entities acknowledged as CQC, CSA, TUV, UL, VDE. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 100kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 115ns, 115ns. Offers information on high and low output current settings at 4.5A, 5.3A. Features peak output current measured at 3A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 130°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 6-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 115ns, 115ns for rapid applications. Maximum pulse width deviation 35ns to maintain signal integrity. Typical rise and fall duration 28ns, 25ns (Max) for signal transitions. Supplier package type 6-SOIC for component selection. Voltage requirement 13.2V ~ 33V for electrical specifications. The primary technology platform Capacitive Coupling linked to the product category. Common forward voltage Vf 2V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 13.2V ~ 33V used to power the device.
