Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 23 | ₹ 13,353.56000 | ₹ 3,07,131.88 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 23 | ₹ 13,685.37000 | ₹ 3,14,763.51 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Audio/Video Channel Count | 2 | |
| Dual Side Input Counts | 2/0 | |
| Isolation Barrier Voltage | 1500VDC | |
| Minimum Surge Tolerance | 1kV/µs | |
| Entry Signal Category | DC | |
| Exit Signal Category | Open Collector, Schottky Clamped | |
| Per-Channel Output Current | 25 mA | |
| Transfer Speed Mbps | 10MBd | |
| Max Low-to-High/High-to-Low Delay | 100ns, 100ns | |
| Typical Edge Transition Time | 35ns, 35ns | |
| Typical Forward Voltage | 1.55V | |
| Max Forward DC Current | 20mA | |
| Power Supply Voltage | 4.5V ~ 5.5V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Attachment Mounting Style | Through Hole | |

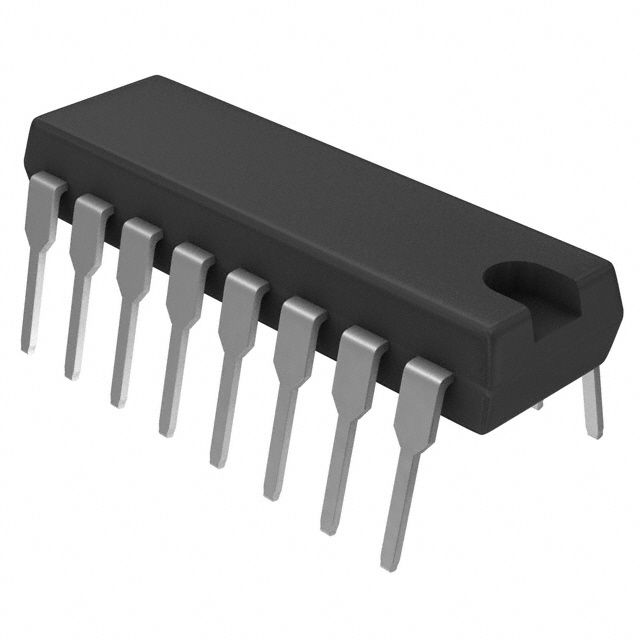

| Component Housing Style | 16-DIP (0.300", 7.62mm) | |
| Vendor Package Type | 16-DIP |
Description
Indicates 2 channels present for improved performance. Ensures a minimum common-mode transient immunity of 1kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20mA. Shows per-channel output current rated at 25 mA. Facilitates a maximum output current level set as 100ns, 100ns. Delivers a data transfer rate measured at 10MBd for rapid operations. Demonstrates a sampling rate capability indicated as 10MBd. Configured with DC input type for diverse applications. Inputs on side 1/side 2 permit 2/0 configuration. Mounting configuration Through Hole for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type Open Collector, Schottky Clamped for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-DIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 16-DIP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 100ns, 100ns for rapid applications. Typical rise and fall duration 35ns, 35ns for signal transitions. Supplier package type 16-DIP for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 1500VDC for electrical safety. Voltage supply 4.5V ~ 5.5V for device operation.
