Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | OPIC™ | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Audio/Video Channel Count | 1 | |
| Dual Side Input Counts | 1/0 | |
| Isolation Barrier Voltage | 5000Vrms | |
| Minimum Surge Tolerance | - | |
| Entry Signal Category | DC | |
| Exit Signal Category | Open Collector | |
| Per-Channel Output Current | 50 mA | |
| Transfer Speed Mbps | - | |
| Max Low-to-High/High-to-Low Delay | 6µs, 3µs | |
| Typical Edge Transition Time | 100ns, 50ns | |
| Typical Forward Voltage | 1.1V | |
| Max Forward DC Current | 50mA | |
| Power Supply Voltage | 3V ~ 15V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -25°C ~ 85°C | |
| Attachment Mounting Style | Surface Mount | |

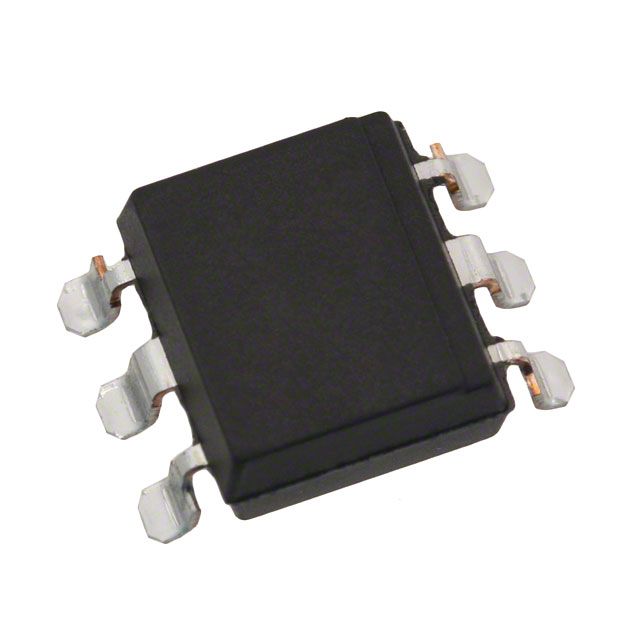

| Component Housing Style | 6-SMD, Gull Wing | |
| Vendor Package Type | 6-SMD |
Description
Indicates 1 channels present for improved performance. Offers a maximum DC forward current (If) specified at 50mA. Shows per-channel output current rated at 50 mA. Facilitates a maximum output current level set as 6µs, 3µs. Configured with DC input type for diverse applications. Inputs on side 1/side 2 permit 1/0 configuration. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Open Collector for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 6-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 6-SMD that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Highest tpLH/tpHL latency 6µs, 3µs for rapid applications. Typical rise and fall duration 100ns, 50ns for signal transitions. Classification series for the product or component OPIC™. Supplier package type 6-SMD for component selection. Voltage requirement 3V ~ 15V for electrical specifications. Common forward voltage Vf 1.1V for diode operation. Isolation voltage 5000Vrms for electrical safety. Voltage supply 3V ~ 15V for device operation.
