Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Audio/Video Channel Count | 1 | |
| Dual Side Input Counts | 1/0 | |
| Isolation Barrier Voltage | 5000Vrms | |
| Minimum Surge Tolerance | 20kV/µs | |
| Entry Signal Category | DC | |
| Exit Signal Category | - | |
| Per-Channel Output Current | 10 mA | |
| Transfer Speed Mbps | 15MBd | |
| Max Low-to-High/High-to-Low Delay | 80ns, 80ns | |
| Typical Edge Transition Time | 3ns, 3ns | |
| Typical Forward Voltage | 1.5V | |
| Max Forward DC Current | 10mA | |
| Power Supply Voltage | 2.7V ~ 5.5V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |

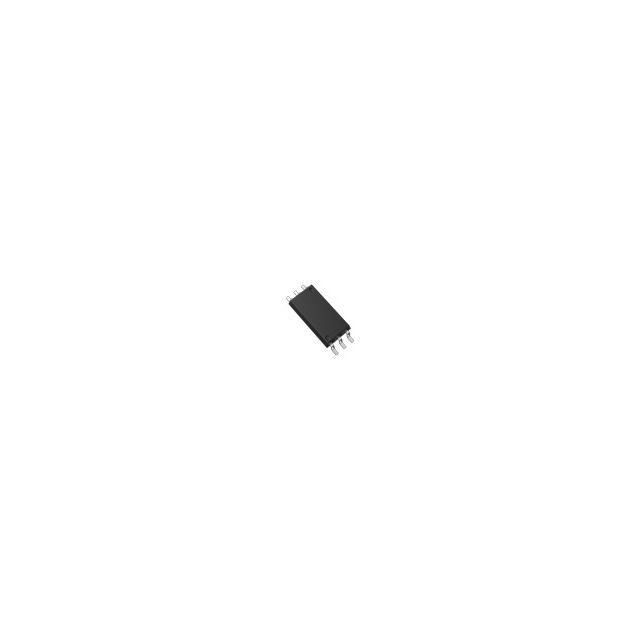

| Component Housing Style | 6-SOIC (0.295", 7.50mm Width) | |
| Vendor Package Type | 6-SO |
Description
Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 20kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 10mA. Shows per-channel output current rated at 10 mA. Facilitates a maximum output current level set as 80ns, 80ns. Delivers a data transfer rate measured at 15MBd for rapid operations. Demonstrates a sampling rate capability indicated as 15MBd. Configured with DC input type for diverse applications. Inputs on side 1/side 2 permit 1/0 configuration. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 6-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 80ns, 80ns for rapid applications. Typical rise and fall duration 3ns, 3ns for signal transitions. Supplier package type 6-SO for component selection. Voltage requirement 2.7V ~ 5.5V for electrical specifications. Common forward voltage Vf 1.5V for diode operation. Isolation voltage 5000Vrms for electrical safety. Voltage supply 2.7V ~ 5.5V for device operation.
