Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 2500Vrms | |
| Minimum Transfer Efficiency | 15% @ 16mA | |
| Maximum Transfer Efficiency | - | |
| Typical Switch Times | 800ns, 800ns (Max) | |
| Typical Edge Transition Time | - | |
| Entry Signal Category | DC | |
| Exit Signal Category | Transistor | |
| Peak Output Voltage | 15V | |
| Per-Channel Output Current | 8mA | |
| Typical Forward Voltage | 1.65V | |
| Max Forward DC Current | 25 mA | |
| Max Saturation Voltage Drop | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 100°C | |
| Attachment Mounting Style | Through Hole | |

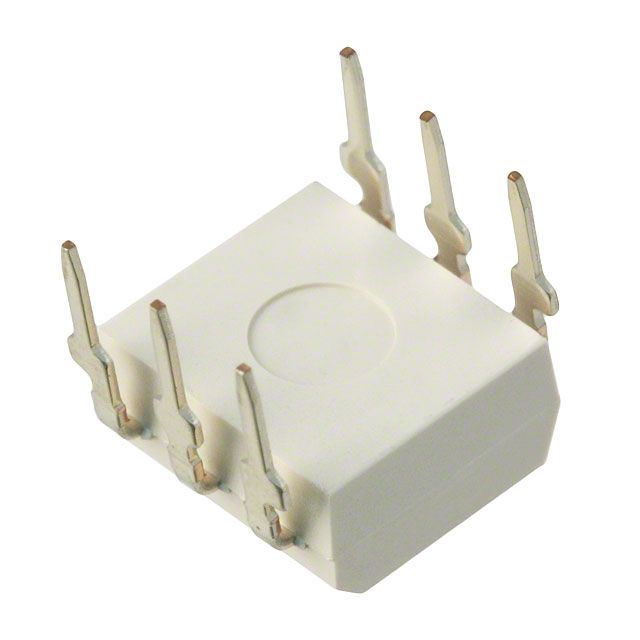

| Component Housing Style | 6-DIP (0.300", 7.62mm) | |
| Vendor Package Type | 6-DIP |
Description
Indicates 1 channels present for improved performance. Offers a maximum DC forward current (If) specified at 25 mA. Shows per-channel output current rated at 8mA. Includes a minimum transfer ratio rated at 15% @ 16mA. Configured with DC input type for diverse applications. Mounting configuration Through Hole for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -55°C ~ 100°C for environmental conditions impacting thermal efficiency. Type Transistor for ensuring compatibility with output systems. Voltage 15V for optimal output electric potential. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 6-DIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 6-DIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 6-DIP for component selection. Standard on/off cycles 800ns, 800ns (Max) for circuits. Common forward voltage Vf 1.65V for diode operation. Isolation voltage 2500Vrms for electrical safety. The maximum output voltage 15V for devices.
