127 Results

Manufacturer1

Product Series Line0

IC Encapsulation Type0

Availability Status0

Transformer Turn Ratio0

Primary Coil Impedance0

Secondary Coil Impedance0

Primary Winding DC Resistance0

Secondary Winding DC Resistance0

Voltage Transformer Design0

Operational Hz Spectrum0

Audio Frequency Curve0

Isolation Barrier Voltage0

Signal Insertion Attenuation0

Reflection Loss dB0

Signal Power Strength0

Ambient Temp Range0

Certification Body0

Attachment Mounting Style0

Package Size Specs0

Maximum Mounted Height0

Lead Termination Type0

Manufacturer

TRIAD MAGNETICS

Part Number
Manufacturer
Price
Product Series Line
IC Encapsulation Type
Availability Status
Transformer Turn Ratio
Primary Coil Impedance
Secondary Coil Impedance
Primary Winding DC Resistance
Secondary Winding DC Resistance
Voltage Transformer Design
Operational Hz Spectrum
Audio Frequency Curve
Isolation Barrier Voltage
Signal Insertion Attenuation
Reflection Loss dB
Signal Power Strength
Ambient Temp Range
Certification Body
Attachment Mounting Style
Package Size Specs
Maximum Mounted Height
Lead Termination Type

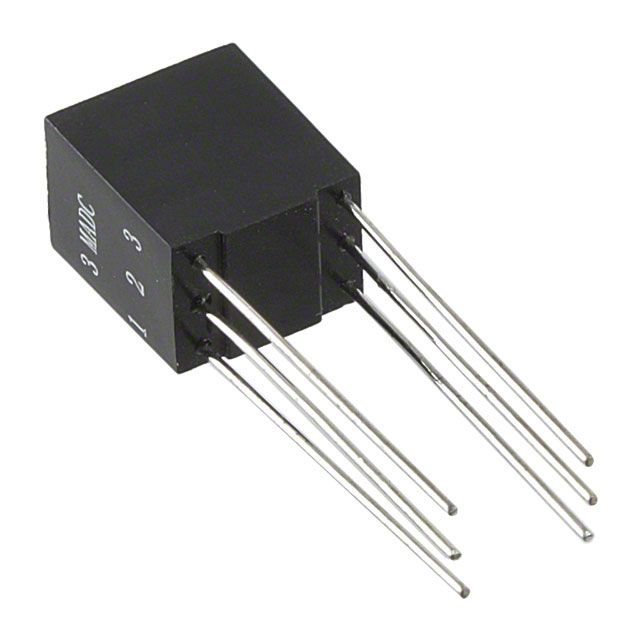

TY-141P TRIAD MAGNETICS
TRIAD MAGNETICS
₹320.40
TY
Bulk
Active
1:1
10kCT
10kCT
820Ohm
1.07kOhm
Data/Voice Coupling
200Hz ~ 15kHz
±2dB
1500V
1.5dB
26dB
100mW
-20°C ~ 85°C
-
Through Hole
0.812" L x 0.700" W (20.62mm x 17.78mm)
0.740" (18.80mm)
PC Pin

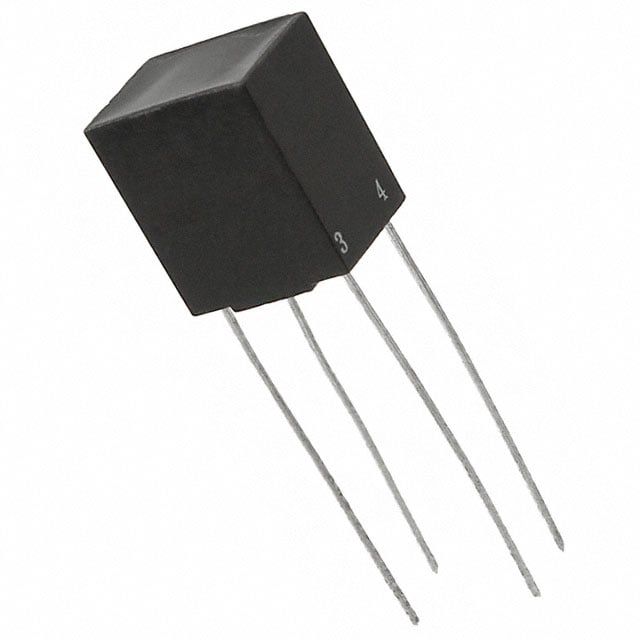

TY-304P TRIAD MAGNETICS
TRIAD MAGNETICS
₹420.97
TY
Bulk
Active
1:1.05
600CT
600CT
42Ohm
60Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
±0.5dB
1500VAC
1dB Typ
26dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.790" L x 0.812" W (20.07mm x 20.62mm)
0.740" (18.80mm)
PC Pin
SP-49 TRIAD MAGNETICS
TRIAD MAGNETICS
₹934.50
Red-Spec
Bulk
Active
1:1.42
300CT
600
41Ohm
98Ohm
Audio Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-40°C ~ 85°C
-
Through Hole
0.410" L x 0.310" W (10.41mm x 7.87mm)
0.465" (11.80mm)
PC Pin
MET-39-T TRIAD MAGNETICS
TRIAD MAGNETICS
₹497.51
MET
Bulk
Active
3.16:1
500
50
55Ohm
8Ohm
Data/Voice Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-20°C ~ 85°C
-
Through Hole
0.409" L x 0.310" W (10.40mm x 7.87mm)
0.465" (11.80mm)
PC Pin
MET-22-T TRIAD MAGNETICS
TRIAD MAGNETICS
₹497.51
MET
Bulk
Active
1:1
2.5kCT
2.5kCT
280Ohm
350Ohm
Data/Voice Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
40mW
-20°C ~ 85°C
-
Through Hole
0.409" L x 0.310" W (10.40mm x 7.87mm)
0.465" (11.80mm)
PC Pin
SP-5 TRIAD MAGNETICS
TRIAD MAGNETICS
₹1,017.27
Red-Spec
Bulk
Active
7.1:1
50kCT
1kCT
3.8kOhm
75Ohm
Audio Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
25mW
-40°C ~ 85°C
-
Through Hole
0.410" L x 0.310" W (10.41mm x 7.87mm)
0.465" (11.80mm)
PC Pin
SP-66 TRIAD MAGNETICS
TRIAD MAGNETICS
₹1,041.83
Red-Spec
Bulk
Active
1:1
10kCT
10kCT
1kOhm
1.3kOhm
Audio Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-40°C ~ 85°C
-
Through Hole
0.410" L x 0.310" W (10.41mm x 7.87mm)
0.465" (11.80mm)
PC Pin
TY-300P TRIAD MAGNETICS
TRIAD MAGNETICS
₹348.88
TY
Bulk
Active
1:2.48
600
600/600
172Ohm
66Ohm, 66Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
-
1500VAC
0.8dB Typ
30dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.812" L x 0.700" W (20.62mm x 17.78mm)
0.740" (18.80mm)
PC Pin
SP-70 TRIAD MAGNETICS
TRIAD MAGNETICS
₹1,106.27
Red-Spec
Bulk
Active
1:1
600
600
72Ohm
92Ohm
Audio Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-40°C ~ 85°C
-
Through Hole
0.410" L x 0.310" W (10.41mm x 7.87mm)
0.465" (11.80mm)
PC Pin
TY-250P TRIAD MAGNETICS
TRIAD MAGNETICS
₹314.17
TY
Box
Active
1:1, 2:1
1kCT
1kCT
172Ohm
172Ohm
Impedance Matching
20Hz ~ 20kHz
±1dB
1500VAC
2.8dB Max @ 1kHz
-
-
-40°C ~ 105°C
-
Through Hole
0.800" L x 0.770" W (20.32mm x 19.56mm)
0.700" (17.78mm)
PC Pin
TY-403P TRIAD MAGNETICS
TRIAD MAGNETICS
₹321.47
TY
Bulk
Active
1.81:1
600
600
80Ohm
56Ohm, 56Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
±0.5dB
1500VAC
1.75dB Typ
15dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.815" L x 1.250" W (20.70mm x 31.75mm)
0.530" (13.46mm)
PC Pin
MET-31-T TRIAD MAGNETICS
TRIAD MAGNETICS
₹705.77
MET
Bulk
Active
1:1
600CT
600CT
70Ohm
95Ohm
Data/Voice Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-20°C ~ 85°C
-
Through Hole
0.409" L x 0.310" W (10.40mm x 7.87mm)
0.465" (11.80mm)
PC Pin
SP-48 TRIAD MAGNETICS
TRIAD MAGNETICS
₹891.78
Red-Spec
Bulk
Active
25:1
7.5kCT
12
796Ohm
2.9Ohm
Audio Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-40°C ~ 85°C
-
Through Hole
0.410" L x 0.310" W (10.41mm x 7.87mm)
0.465" (11.80mm)
PC Pin
SP-52 TRIAD MAGNETICS
TRIAD MAGNETICS
₹1,101.82
Red-Spec
Bulk
Active
1.58:1
1.5kCT
600
168Ohm
92Ohm
Audio Coupling
300Hz ~ 100kHz
±2dB
1000VRMS @ 1 Second
-
-
50mW
-40°C ~ 85°C
-
Through Hole
0.410" L x 0.310" W (10.41mm x 7.87mm)
0.465" (11.80mm)
PC Pin
TY-400P TRIAD MAGNETICS
TRIAD MAGNETICS
₹258.10
TY
Bulk
Active
1:1.07
600
600
76.5Ohm
108Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
±0.5dB
1500VAC
1.75dB Typ
15dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.820" L x 0.715" W (20.83mm x 18.16mm)
0.750" (19.05mm)
PC Pin
TY-402P TRIAD MAGNETICS
TRIAD MAGNETICS
₹347.41
TY
Bulk
Active
1:1.1
600
600
80Ohm
112Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
±0.5dB
1500VAC
1.75dB Typ
13dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.815" L x 1.250" W (20.70mm x 31.75mm)
0.530" (13.46mm)
PC Pin
TY-146P TRIAD MAGNETICS
TRIAD MAGNETICS
₹479.71
TY
Bulk
Active
1:1
600, 150/150
600, 150/150
17Ohm, 19Ohm
14.5Ohm, 22Ohm
Data/Voice Coupling
200Hz ~ 15kHz
±2dB
1500V
1.5dB
26dB
1W
-20°C ~ 85°C
-
Through Hole
1.375" L x 1.187" W (34.93mm x 30.15mm)
1.187" (30.15mm)
PC Pin
TY-307P TRIAD MAGNETICS
TRIAD MAGNETICS
₹319.51
TY
Bulk
Active
1:1.07
600
600
43Ohm
61Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
±0.5dB
1500VAC
1dB Typ
26dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.670" L x 0.781" W (17.02mm x 19.84mm)
0.470" (11.94mm)
PC Pin
TY-145P TRIAD MAGNETICS
TRIAD MAGNETICS
₹320.40
TY
Bulk
Active
1:1
600CT
600CT
44Ohm
58Ohm
Data/Voice Coupling
200Hz ~ 15kHz
±2dB
1500V
1.5dB
26dB
100mW
-20°C ~ 85°C
-
Through Hole
0.812" L x 0.700" W (20.62mm x 17.78mm)
0.740" (18.80mm)
PC Pin
TY-311P TRIAD MAGNETICS
TRIAD MAGNETICS
₹218.05
TY
Bulk
Active
1:1.05
600
600
38Ohm
53Ohm
Data/Voice Coupling
300Hz ~ 3.5kHz
±0.5dB
1500VAC
1dB Typ
26dB Typ
-45dB ~ 7dB
-20°C ~ 85°C
-
Through Hole
0.812" L x 0.715" W (20.62mm x 18.16mm)
0.740" (18.80mm)
PC Pin
