Description

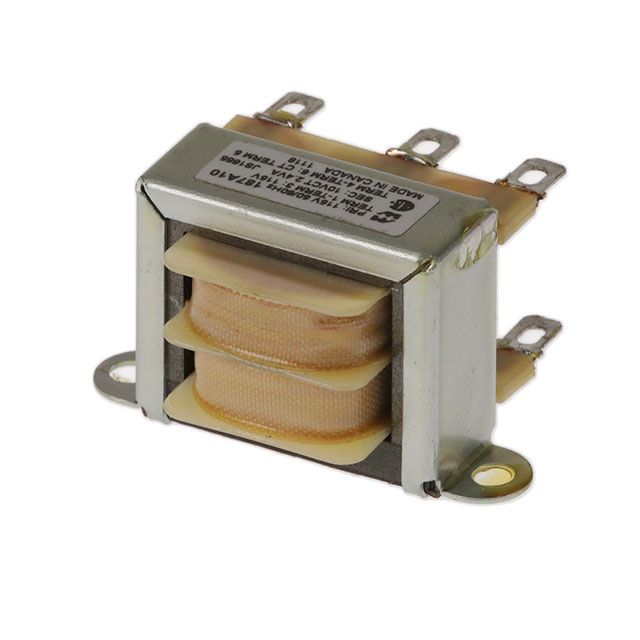

Includes a center tap characterized as Yes for flexible setup. Supplies peak output current defined as 80mA. Maximum installed height of 29.97mm for components affixed to the board. Mounting configuration Chassis Mount for structural stability. Type of housing Box for safeguarding or transporting components. Maximum power capability 2.4VA for safeguarding the device. Primary winding(s) Single for coil or transformer setup. Product status Active concerning availability and lifecycle. Supplementary turns Single for transformers or coils. Classification series for the product or component 187. Details on package size 52.32mm L x 36.45mm W for electrical or mechanical components. Measurement dimensions 52.32mm L x 36.45mm W for component specifications. Type of termination Solder, Quick Connect for connector or device. Type classification Laminated Core for specifications. Isolation voltage 2000Vrms for electrical safety. The primary voltage input 115V for transformers or circuits. Secondary voltage 28V when fully loaded. Weight 0.29 lb (131.54 g) for product specifications.
