Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 12,626.77000 | ₹ 6,31,338.50 |
| 25 | ₹ 13,013.96000 | ₹ 3,25,349.00 |
| 10 | ₹ 13,586.77000 | ₹ 1,35,867.70 |
| 1 | ₹ 15,131.21000 | ₹ 15,131.21 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 13,796.78000 | ₹ 1,37,967.80 |
| 5 | ₹ 14,006.82000 | ₹ 70,034.10 |
| 3 | ₹ 14,220.42000 | ₹ 42,661.26 |
| 1 | ₹ 14,436.69000 | ₹ 14,436.69 |
Stock:
Distributor: 115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 13,796.78000 | ₹ 1,37,967.80 |
| 5 | ₹ 14,006.82000 | ₹ 70,034.10 |
| 3 | ₹ 14,220.42000 | ₹ 42,661.26 |
| 1 | ₹ 14,436.69000 | ₹ 14,436.69 |
Stock:
Distributor: 123
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 15,106.86000 | ₹ 15,106.86 |
| 5 | ₹ 14,490.09000 | ₹ 72,450.45 |
| 10 | ₹ 13,872.43000 | ₹ 1,38,724.30 |
| 25 | ₹ 13,019.81000 | ₹ 3,25,495.25 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 15,106.86000 | ₹ 15,106.86 |
| 10 | ₹ 13,872.43000 | ₹ 1,38,724.30 |
| 25 | ₹ 13,019.81000 | ₹ 3,25,495.25 |

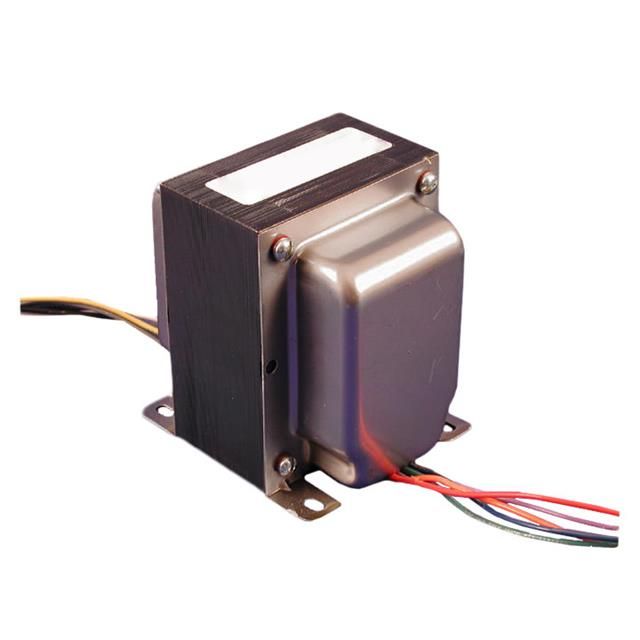

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 290 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Device Type Classification | Laminated Core | |
| Input Primary Voltage | 120V, 220V, 240V | |
| Loaded Secondary Volts | 356V, 100V, 6.39V | |
| Peak Output Current | 420mA, 50mA, 7A | |
| Input Coil Turns | Single, Multiple Taps | |
| Output Coil Turns | Triple | |
| Midpoint Connection | Yes | |
| Maximum Power Handling | - | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Wire Leads | |
| Package Size Specs | 95.25mm L x 108.46mm W | |
| Maximum Mounted Height | 115.06mm | |
| Isolation Barrier Voltage | - | |
| Product Weight Grams | 9 lbs (4.1 kg) |
Description
Includes a center tap characterized as Yes for flexible setup. Supplies peak output current defined as 420mA, 50mA, 7A. Maximum installed height of 115.06mm for components affixed to the board. Mounting configuration Chassis Mount for structural stability. Type of housing Box for safeguarding or transporting components. Primary winding(s) Single, Multiple Taps for coil or transformer setup. Product status Active concerning availability and lifecycle. Supplementary turns Triple for transformers or coils. Classification series for the product or component 290. Details on package size 95.25mm L x 108.46mm W for electrical or mechanical components. Measurement dimensions 95.25mm L x 108.46mm W for component specifications. Type of termination Wire Leads for connector or device. Type classification Laminated Core for specifications. The primary voltage input 120V, 220V, 240V for transformers or circuits. Secondary voltage 356V, 100V, 6.39V when fully loaded. Weight 9 lbs (4.1 kg) for product specifications.
