Description

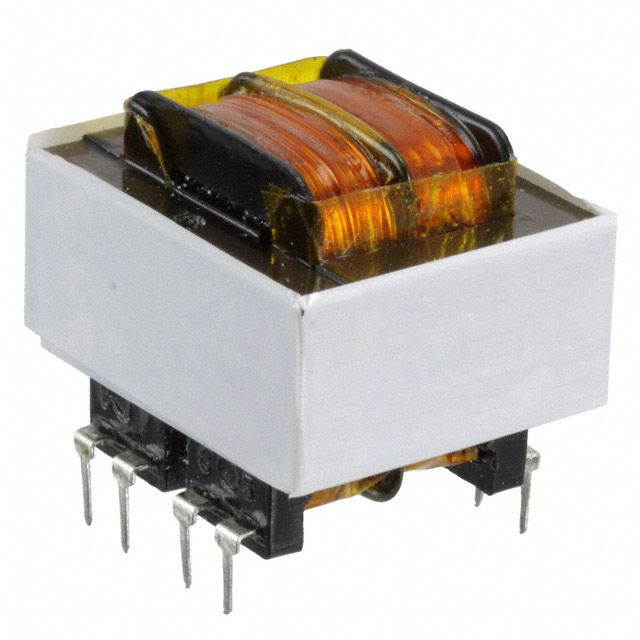

Includes a center tap characterized as No for flexible setup. Supplies peak output current defined as Parallel 500mA, Series 250mA. Maximum installed height of 33.32mm for components affixed to the board. Mounting configuration Through Hole for structural stability. Type of housing Tube for safeguarding or transporting components. Maximum power capability 6VA for safeguarding the device. Primary winding(s) Single for coil or transformer setup. Product status Active concerning availability and lifecycle. Supplementary turns Dual for transformers or coils. Classification series for the product or component Split Pack™, Class 2/3, F. Details on package size 41.28mm L x 33.32mm W for electrical or mechanical components. Measurement dimensions 41.28mm L x 33.32mm W for component specifications. Type of termination PC Pin for connector or device. Type classification Laminated Core for specifications. Isolation voltage 2500Vrms for electrical safety. The primary voltage input 115V for transformers or circuits. Secondary voltage Parallel 12V, Series 24V when fully loaded. Weight 0.7 lb (317.51 g) for product specifications.
