Manufacturer

SIGNAL TRANSFORMER

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Device Type Classification	Input Primary Voltage	Loaded Secondary Volts	Peak Output Current	Input Coil Turns	Output Coil Turns	Midpoint Connection	Maximum Power Handling	Attachment Mounting Style	Lead Termination Type	Package Size Specs	Maximum Mounted Height	Isolation Barrier Voltage	Product Weight Grams

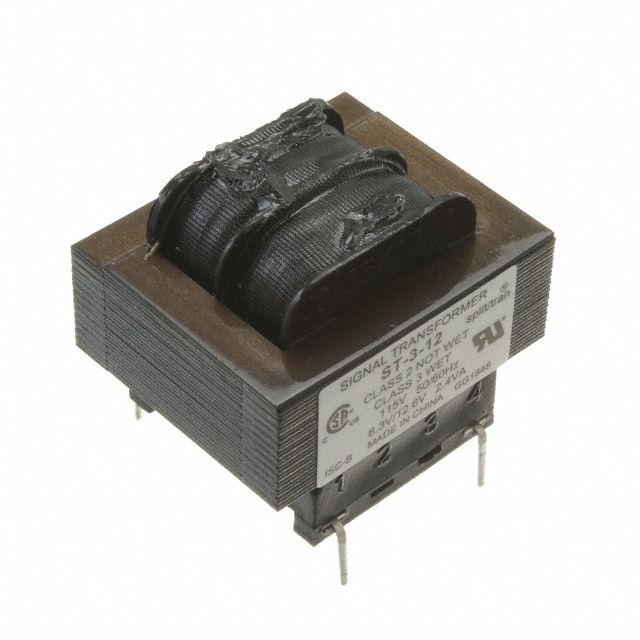

ST-3-12 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹744.46	ST	Box	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms	0.25 lb (113.4 g)
CL2-10R-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹899.17	CL2	Box	Active	Laminated Core	115V, 230V	24V	420mA	Dual	Single	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms	0.53 lb (240.4 g)

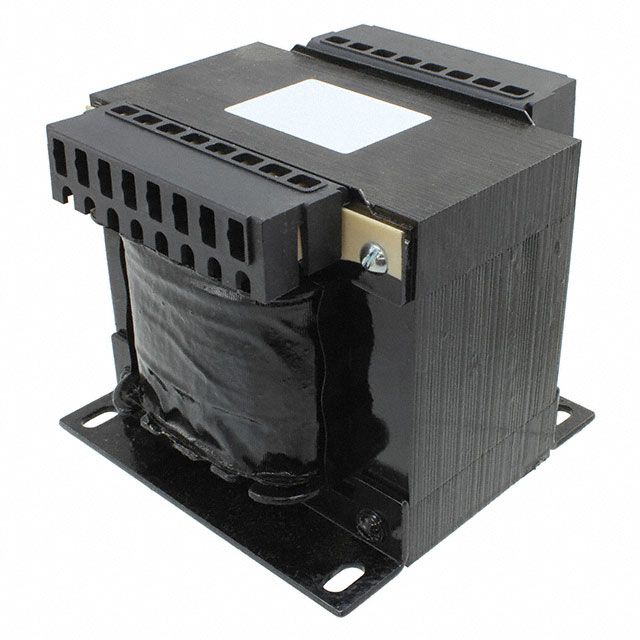

MPI-900-230 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹28,149.12	MPI	Bulk	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 115V, Series 230V	Parallel 7.8A, Series 3.9A	Dual, Multiple Taps	Dual	No	900VA	Chassis Mount	Terminal Block	133.30mm L x 139.70mm W	117.80mm	4000Vrms	19.8 lbs (9 kg)
LP-30-200 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,289.97	LP	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms	0.438 lb (198.67 g)
14A-2.5R-36 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,546.98	One-4-All™	Box	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 140mA, Series 70mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.30mm L x 36.50mm W	28.60mm	4000Vrms	0.25 lb (113.4 g)
PC-34-125 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,088.94	PC	Box	Active	Laminated Core	115V	Parallel 17V, Series 34V	Parallel 250mA, Series 125mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms	0.313 lb (141.97 g)
DP-241-5-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,109.88	Two-4-One™	Box	Active	Laminated Core	115V, 230V	24V	500mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms	0.7 lb (317.51 g)
CL2-80-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹2,568.43	CL2	Bulk	Active	Laminated Core	115V, 230V	24V	3.33A	Dual	Single	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms	2.8 lbs (1.3 kg)
A41-80-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹3,119.62	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 6.6A, Series 3.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms	2.8 lbs (1.3 kg)
DPC-24-1000 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,806.17	DPC	Box	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Dual	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms	0.75 lb (340.19 g)

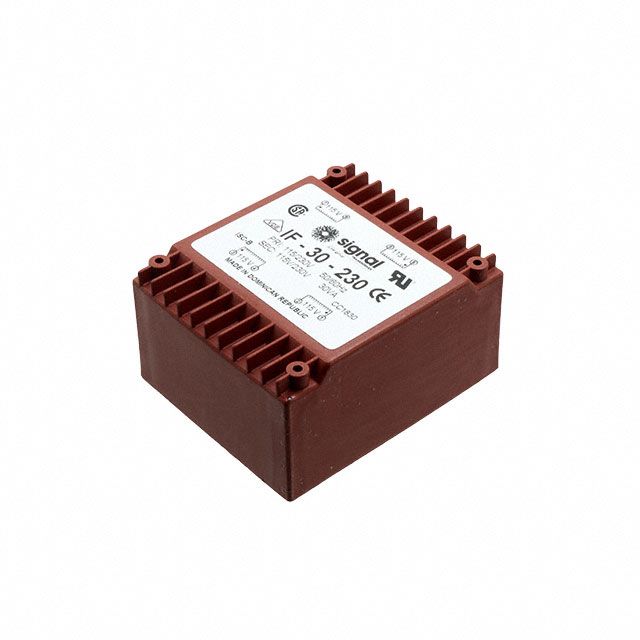

IF-30-230 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹2,567.65	IF	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 260mA, Series 130mA	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms	1.3 lbs (589.7 g)
LP-24-500 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,548.60	LP	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms	0.688 lb (312.07 g)
16-100 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹52,515.23	-	Box	Active	Laminated Core	105V, 115V, 125V	Parallel 8V, Series 16V	Parallel 200A, Series 100A	Single, Multiple Taps	Single, Multiple Taps	Yes	1600VA	Chassis Mount	Solder, Quick Connect	190.50mm L x 190.50mm W	162.00mm	1500Vrms	50 lbs (22.7 kg)
ST-5-16 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹867.26	ST	BoxRetail Package	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 1.6A, Series 800mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms	0.7 lb (317.51 g)

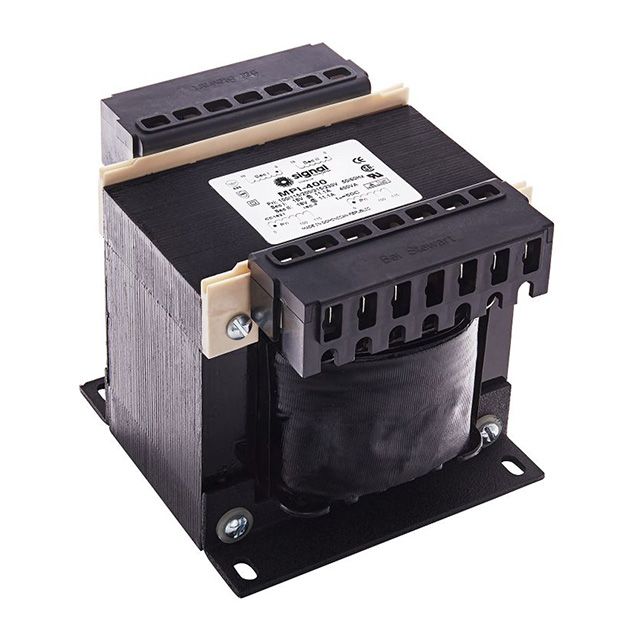

MPI-400-230 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹16,680.46	MPI	Bulk	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 115V, Series 230V	Parallel 3.4A, Series 1.7A	Dual, Multiple Taps	Dual	No	400VA	Chassis Mount	Terminal Block	104.80mm L x 128.10mm W	98.20mm	4000Vrms	9.9 lbs (4.5 kg)
ST-3-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹615.67	ST	Box	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms	0.25 lb (113.4 g)
ST-4-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹801.00	ST	Box	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms	0.44 lb (199.58 g)
LP-34-340 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹1,948.57	LP	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms	0.688 lb (312.07 g)
14A-10R-36 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹940.26	One-4-All™	Box	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 560mA, Series 280mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	34.90mm	4000Vrms	0.53 lb (240.4 g)
241-7-24 SIGNAL TRANSFORMER	SIGNAL TRANSFORMER	₹2,327.61	Two-4-One™	Box	Active	Laminated Core	115V	24V	2.4A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms	1.7 lbs (771.1 g)
