Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 70F | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |

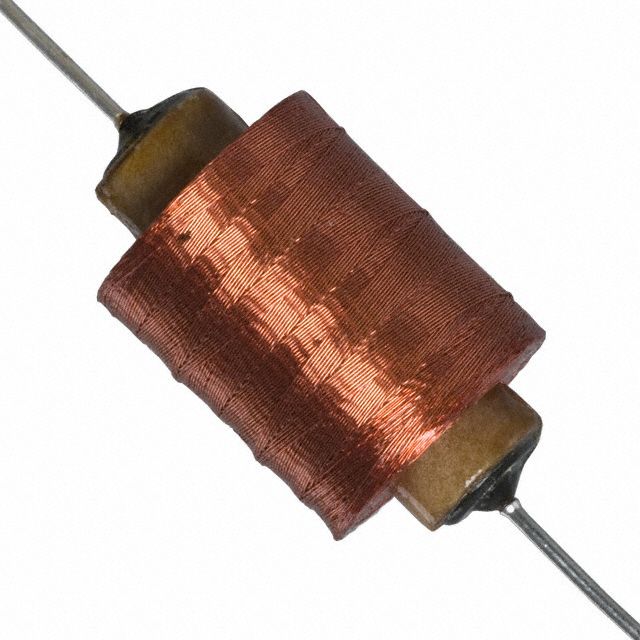

| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 330 mH | |
| Accuracy Tolerance Percentage | ±5% | |
| Ampere Capacity Rating | 34 mA | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 540Ohm Max | |
| Quality Factor at Frequency | 54 @ 25kHz | |
| Self-Resonance Frequency | 60kHz | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Test Frequency for Inductance | 25 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Axial | |
| Vendor Package Type | - | |
| Package Size Specs | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | |
| Maximum Mounted Height | - |
Description
Sets the ampere rating to 34 mA. Provides a DC resistance measurement of 540Ohm Max for accurate circuit operation. Features a 60kHz self-resonant frequency that enhances component efficiency. Enables a 25 kHz frequency during testing to guarantee accurate device validation. Provides 330 mH inductance for circuit tuning and filtering. Assessed for inductance at 25 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Axial that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Quality factor at frequency 54 @ 25kHz for resonant systems. Classification series for the product or component 70F. Shielding Unshielded for EMI/RFI protection. Details on package size 0.580" Dia x 0.880" L (14.73mm x 22.35mm) for electrical or mechanical components. Measurement dimensions 0.580" Dia x 0.880" L (14.73mm x 22.35mm) for component specifications. Precision tolerance level ±5% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
