Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 9250 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 1.8 mH | |
| Accuracy Tolerance Percentage | ±10% | |
| Ampere Capacity Rating | 50 mA | |
| Saturation Current Level | 30mA | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 29.9Ohm Max | |
| Quality Factor at Frequency | 45 @ 250kHz | |
| Self-Resonance Frequency | 1MHz | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Test Frequency for Inductance | 250 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Through Hole | |

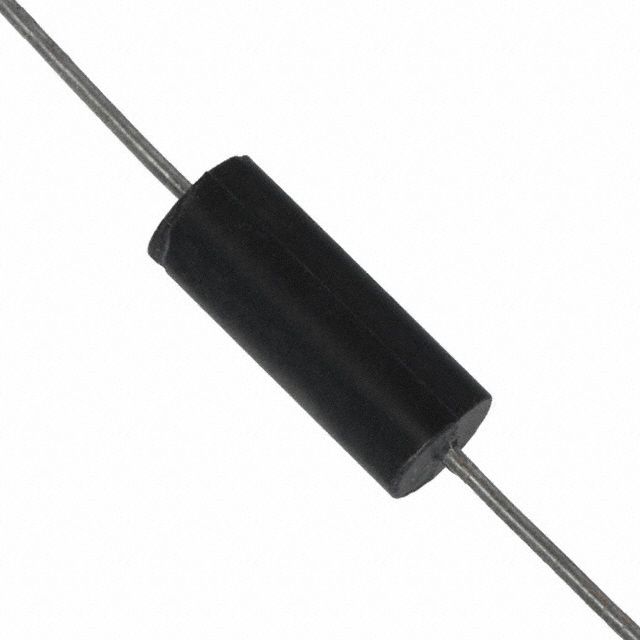

| Component Housing Style | Axial | |
| Vendor Package Type | - | |
| Package Size Specs | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | |
| Maximum Mounted Height | - |
Description
Supports saturation current indicated at 30mA. Displays Isat saturation current noted at 30mA. Sets the ampere rating to 50 mA. Provides a DC resistance measurement of 29.9Ohm Max for accurate circuit operation. Features a 1MHz self-resonant frequency that enhances component efficiency. Enables a 250 kHz frequency during testing to guarantee accurate device validation. Provides 1.8 mH inductance for circuit tuning and filtering. Assessed for inductance at 250 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Axial that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Quality factor at frequency 45 @ 250kHz for resonant systems. Classification series for the product or component 9250. Shielding Shielded for EMI/RFI protection. Details on package size 0.162" Dia x 0.410" L (4.11mm x 10.41mm) for electrical or mechanical components. Measurement dimensions 0.162" Dia x 0.410" L (4.11mm x 10.41mm) for component specifications. Precision tolerance level ±10% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
