Description

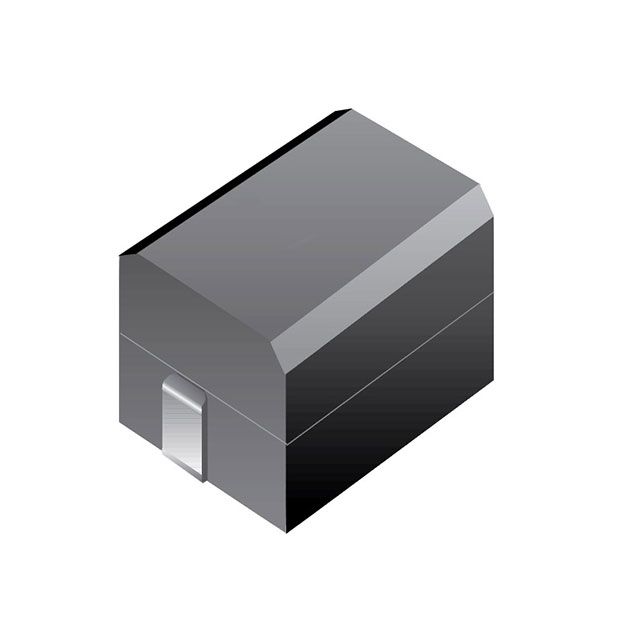

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports saturation current indicated at 700mA. Displays Isat saturation current noted at 700mA. Sets the ampere rating to 900 mA. Provides a DC resistance measurement of 380mOhm Max for accurate circuit operation. Features a 46MHz self-resonant frequency that enhances component efficiency. Enables a 7.96 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.087" (2.20mm) for components affixed to the board. Provides 4.7 µH inductance for circuit tuning and filtering. Assessed for inductance at 7.96 MHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 150°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1210 (3225 Metric) that offers mechanical and thermal protection. Type of package 3225 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Quality factor at frequency 8 @ 7.96MHz for resonant systems. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component CC322522A. Shielding Unshielded for EMI/RFI protection. Details on package size 0.126" L x 0.098" W (3.20mm x 2.50mm) for electrical or mechanical components. Measurement dimensions 0.126" L x 0.098" W (3.20mm x 2.50mm) for component specifications. Supplier package type 3225 for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±10% in manufacturing processes. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
