Description

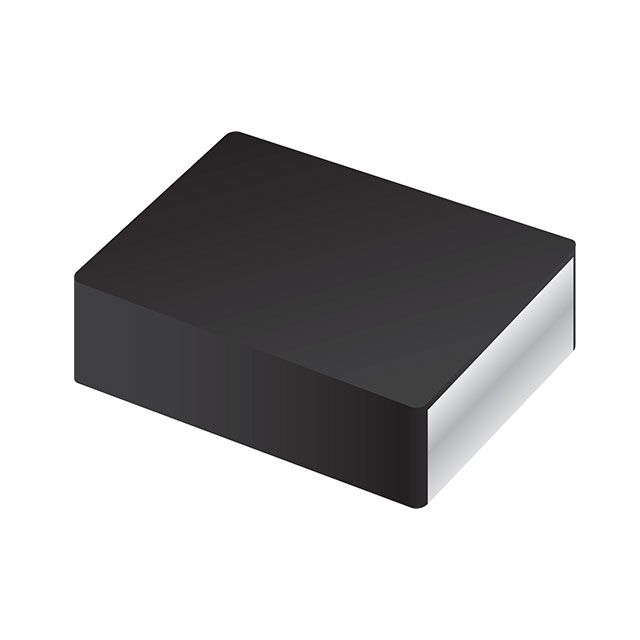

Supports saturation current indicated at 6.6A. Displays Isat saturation current noted at 6.6A. Sets the ampere rating to 4.4 A. Provides a DC resistance measurement of 26mOhm Max for accurate circuit operation. Features a 170MHz self-resonant frequency that enhances component efficiency. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.039" (1.00mm) for components affixed to the board. Provides 330 nH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Iron Powder to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1008 (2520 Metric) that offers mechanical and thermal protection. Type of package 1008 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Quality factor at frequency 35 @ 1MHz for resonant systems. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component SRP2510A. Shielding Shielded for EMI/RFI protection. Details on package size 0.098" L x 0.079" W (2.50mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.098" L x 0.079" W (2.50mm x 2.00mm) for component specifications. Supplier package type 1008 for component selection. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
