Description

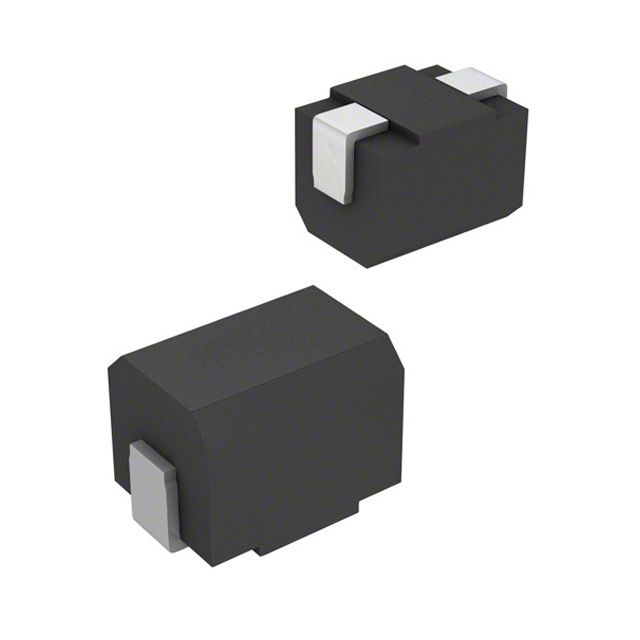

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Sets the ampere rating to 450 mA. Provides a DC resistance measurement of 500mOhm Max for accurate circuit operation. Features a 100MHz self-resonant frequency that enhances component efficiency. Enables a 7.96 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.134" (3.40mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 7.96 MHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -30°C ~ 100°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1812 (4532 Metric) that offers mechanical and thermal protection. Type of package 1812 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Quality factor at frequency 50 @ 7.96MHz for resonant systems. Classification series for the product or component 3613C, Sigma Inductors. Shielding Unshielded for EMI/RFI protection. Details on package size 0.177" L x 0.126" W (4.50mm x 3.20mm) for electrical or mechanical components. Measurement dimensions 0.177" L x 0.126" W (4.50mm x 3.20mm) for component specifications. Supplier package type 1812 for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±20% in manufacturing processes. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
