Description

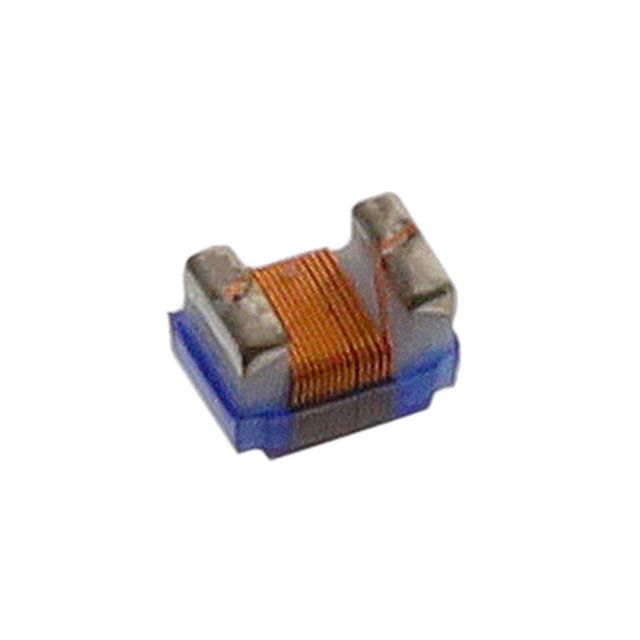

Sets the ampere rating to 400 mA. Provides a DC resistance measurement of 640mOhm Max for accurate circuit operation. Features a 870MHz self-resonant frequency that enhances component efficiency. Enables a 250 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.060" (1.52mm) for components affixed to the board. Provides 180 nH inductance for circuit tuning and filtering. Assessed for inductance at 250 MHz frequency to verify component reliability. Substance Ceramic to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0805 (2015 Metric) that offers mechanical and thermal protection. Type of package 0805 (2012 Metric) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Quality factor at frequency 50 @ 250MHz for resonant systems. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component 3650, Sigma Inductors. Shielding Unshielded for EMI/RFI protection. Details on package size 0.090" L x 0.068" W (2.29mm x 1.73mm) for electrical or mechanical components. Measurement dimensions 0.090" L x 0.068" W (2.29mm x 1.73mm) for component specifications. Supplier package type 0805 (2012 Metric) for component selection. Precision tolerance level ±5% in manufacturing processes. Type classification Wirewound for specifications.
