Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WE-KI | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |

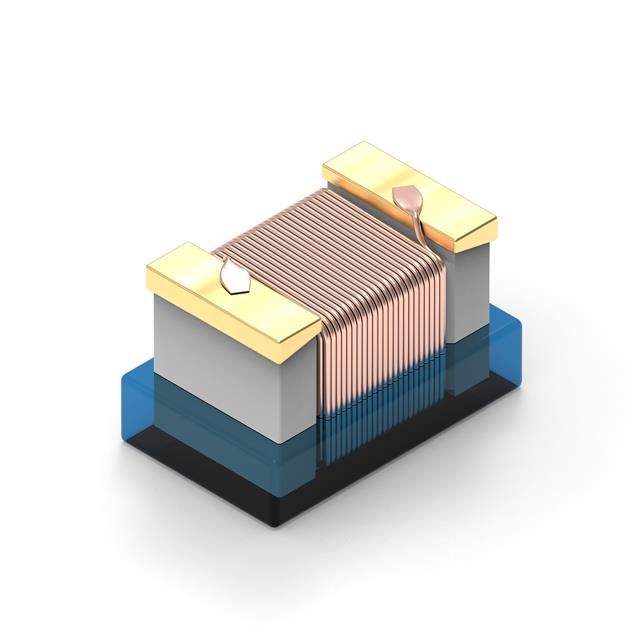

| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ceramic | |
| Coil Inductance Value | 1.2 µH | |
| Accuracy Tolerance Percentage | ±5% | |
| Ampere Capacity Rating | 200 mA | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 3.2Ohm Max | |
| Quality Factor at Frequency | 18 @ 50MHz | |
| Self-Resonance Frequency | 190MHz | |
| Performance Rating Specs | AEC-Q200 | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Test Frequency for Inductance | 25 MHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 0805 (2012 Metric) | |
| Vendor Package Type | 0805 | |
| Package Size Specs | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Maximum Mounted Height | 0.055" (1.40mm) |
Description
Sets the ampere rating to 200 mA. Provides a DC resistance measurement of 3.2Ohm Max for accurate circuit operation. Features a 190MHz self-resonant frequency that enhances component efficiency. Enables a 25 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.055" (1.40mm) for components affixed to the board. Provides 1.2 µH inductance for circuit tuning and filtering. Assessed for inductance at 25 MHz frequency to verify component reliability. Substance Ceramic to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0805 (2012 Metric) that offers mechanical and thermal protection. Type of package 0805 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Quality factor at frequency 18 @ 50MHz for resonant systems. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component WE-KI. Shielding Unshielded for EMI/RFI protection. Details on package size 0.079" L x 0.049" W (2.00mm x 1.25mm) for electrical or mechanical components. Measurement dimensions 0.079" L x 0.049" W (2.00mm x 1.25mm) for component specifications. Supplier package type 0805 for component selection. Precision tolerance level ±5% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
