391 Results

Manufacturer1

Product Series Line0

IC Encapsulation Type0

Availability Status0

Device Type Classification0

Inductor Core Type0

Coil Inductance Value0

Accuracy Tolerance Percentage0

Ampere Capacity Rating0

Saturation Current Level0

Electromagnetic Interference Protection0

Direct Current Resistance0

Quality Factor at Frequency0

Self-Resonance Frequency0

Performance Rating Specs0

Ambient Temp Range0

Test Frequency for Inductance0

Key Product Highlights0

Attachment Mounting Style0

Component Housing Style0

Vendor Package Type0

Package Size Specs0

Maximum Mounted Height0

Manufacturer

EATON - ELECTRONICS DIVISION

Part Number
Manufacturer
Price
Product Series Line
IC Encapsulation Type
Availability Status
Device Type Classification
Inductor Core Type
Coil Inductance Value
Accuracy Tolerance Percentage
Ampere Capacity Rating
Saturation Current Level
Electromagnetic Interference Protection
Direct Current Resistance
Quality Factor at Frequency
Self-Resonance Frequency
Performance Rating Specs
Ambient Temp Range
Test Frequency for Inductance
Key Product Highlights
Attachment Mounting Style
Component Housing Style
Vendor Package Type
Package Size Specs
Maximum Mounted Height

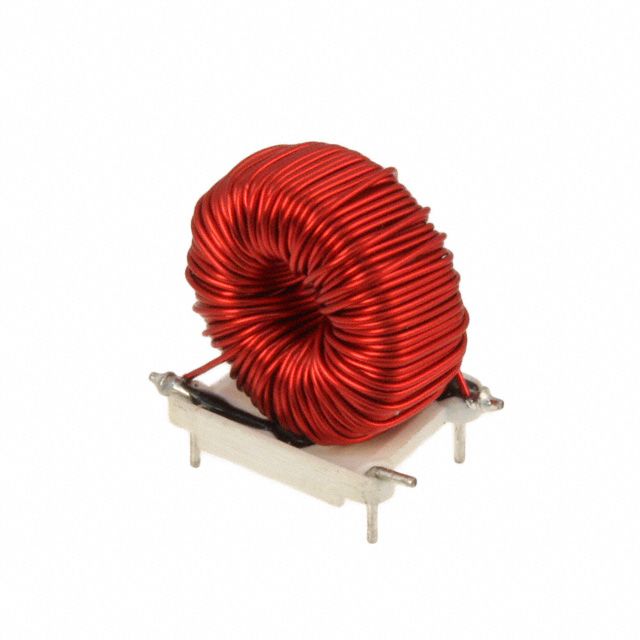

CTX16-17309-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
PFC
Bulk
Obsolete
Toroidal
Iron Powder
200 µH
-
2 A
-
Unshielded
225mOhm Max
-
-
-
-20°C ~ 105°C
100 kHz
-
Through Hole
Radial, Vertical, 4 Leads (Open)
-
1.386" L x 0.866" W (35.20mm x 22.00mm)
1.319" (33.50mm)
CTX22-15557 EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
PFC
Bulk
Obsolete
Toroidal
Ferrite
1 mH
-
1.3 A
-
Unshielded
470mOhm Max
-
-
-
-20°C ~ 105°C
100 kHz
-
Surface Mount
10-SMD, Gull Wing
10-SMT
1.252" L x 1.063" W (31.80mm x 27.00mm)
0.516" (13.10mm)
CTX08-13679 EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
PFC
Bulk
Obsolete
Toroidal
Ferrite
1.2 mH
±3%
4.7 A
-
Unshielded
67mOhm Max
-
-
-
-20°C ~ 105°C
100 kHz
-
Through Hole
Radial, 10 Leads
-
2.020" L x 1.900" W (51.31mm x 48.26mm)
1.530" (38.86mm)

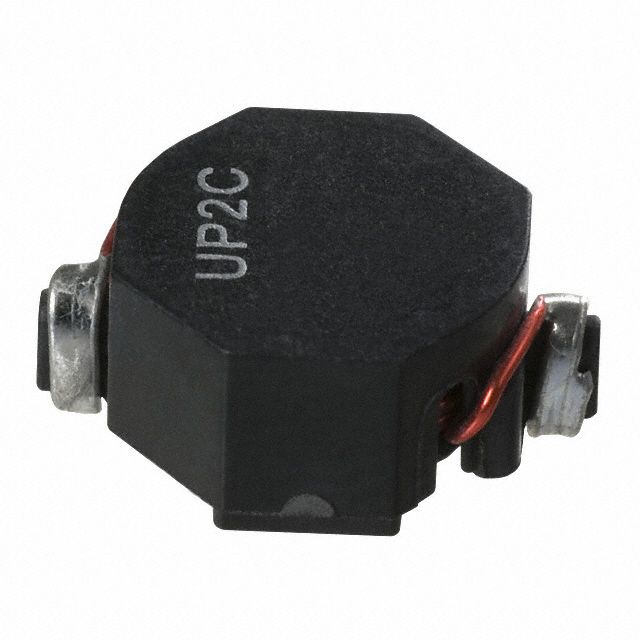

UP2C-100-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
UNI-PAC™ 2C
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Ferrite
10 µH
±20%
3.61 A
3.94A
Unshielded
28.3mOhm
-
-
-
-40°C ~ 85°C
100 kHz
-
Surface Mount
Nonstandard
-
0.508" L x 0.370" W (12.90mm x 9.40mm)
0.205" (5.20mm)
HC2LP-R47-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HC2LP
Tape & Reel (TR)
Active
Drum Core, Wirewound
Ferrite
470 nH
±20%
52.9 A
63.75A
Unshielded
0.6mOhm Max
-
-
-
-40°C ~ 85°C
300 kHz
-
Surface Mount
Nonstandard
-
0.756" L x 0.756" W (19.20mm x 19.20mm)
0.440" (11.18mm)
HC2-1R0-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HC2
Bulk
Obsolete
Wirewound
-
1 µH
±20%
33 A
42.5A
Unshielded
1.3mOhm Max
-
-
-
-40°C ~ 85°C
300 kHz
-
Surface Mount
Nonstandard
-
0.756" L x 0.748" W (19.20mm x 19.00mm)
0.500" (12.70mm)
CTX08-14729 EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
CTX
Bulk
Obsolete
-
-
35 µH
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

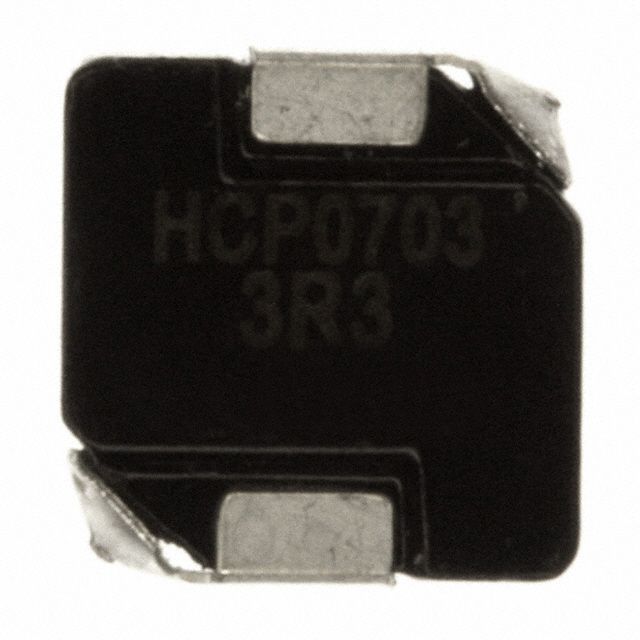

HCP0703-3R3-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HCP0703
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Iron Powder
3.3 µH
±20%
6 A
13.5A
Shielded
30mOhm Max
-
-
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
Nonstandard
-
0.287" L x 0.276" W (7.30mm x 7.00mm)
0.118" (3.00mm)

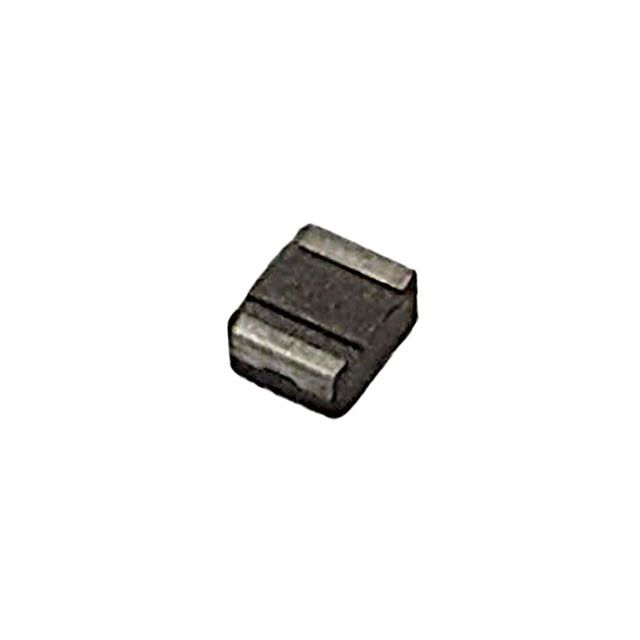

MPI2512V2-1R0-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
MPI25-V2
Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Active
-
-
1 µH
±20%
3.3 A
4.4A
Shielded
44mOhm Max
-
70MHz
-
-40°C ~ 125°C
1 MHz
-
Surface Mount
1008 (2520 Metric)
1008
0.098" L x 0.079" W (2.50mm x 2.00mm)
0.049" (1.25mm)
MPI4015V2-4R7-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
MPI40-V2
Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Active
Drum Core, Wirewound
Metal Composite
4.7 µH
±20%
2.2 A
3A
Shielded
130mOhm Max
-
22MHz
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
Nonstandard, 2 Lead
-
0.160" L x 0.171" W (4.06mm x 4.35mm)
0.059" (1.50mm)

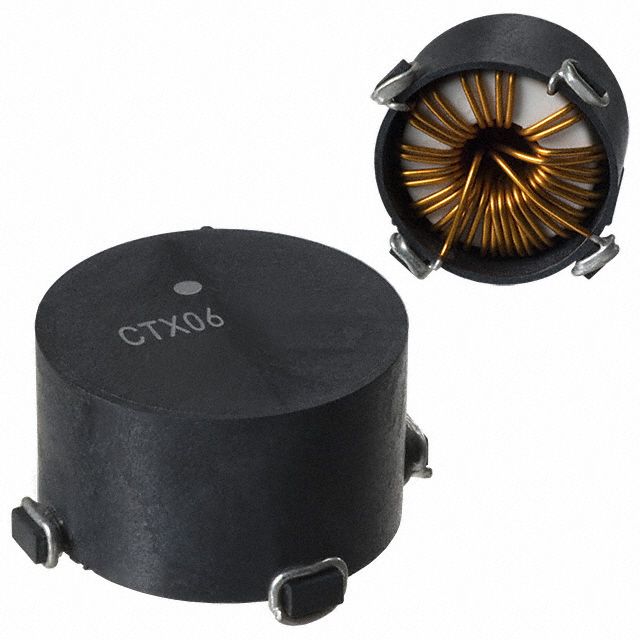

CTX06-14620 EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
CTX
Bulk
Obsolete
Toroidal
Iron Powder
47 µH
-
7.1 A
-
Unshielded
16.6mOhm Max
-
-
-
-40°C ~ 75°C
100 kHz
-
Surface Mount
Nonstandard
-
0.984" L x 0.984" W (25.00mm x 25.00mm)
0.484" (12.30mm)
MPI4040R4-100-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
MPI4040
Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Obsolete
Drum Core, Wirewound
Metal Composite
10 µH
±20%
1.9 A
2.6A
Shielded
148mOhm
-
-
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
1816 (4540 Metric)
-
0.175" L x 0.160" W (4.45mm x 4.06mm)
0.079" (2.00mm)

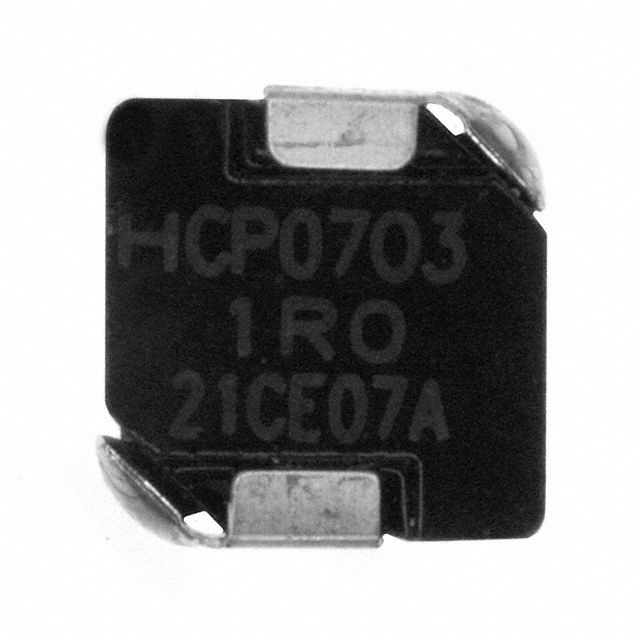

HCP0703-1R0-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HCP0703
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Iron Powder
1 µH
±20%
11 A
22A
Shielded
10mOhm Max
-
-
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
Nonstandard
-
0.287" L x 0.276" W (7.30mm x 7.00mm)
0.118" (3.00mm)

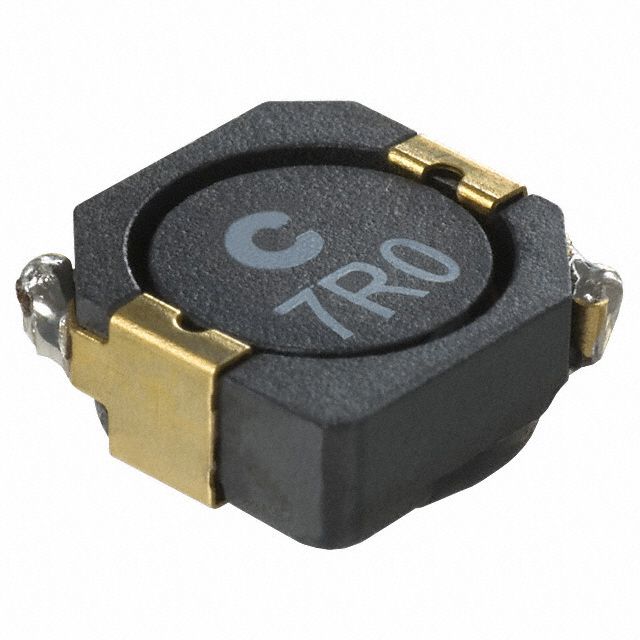

CD1-7R0-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
CD
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Ferrite
7 µH
±30%
4.55 A
4.8A
Shielded
27mOhm Max
-
-
-
-40°C ~ 85°C
100 kHz
-
Surface Mount
Nonstandard
-
0.413" L x 0.409" W (10.50mm x 10.40mm)
0.157" (4.00mm)

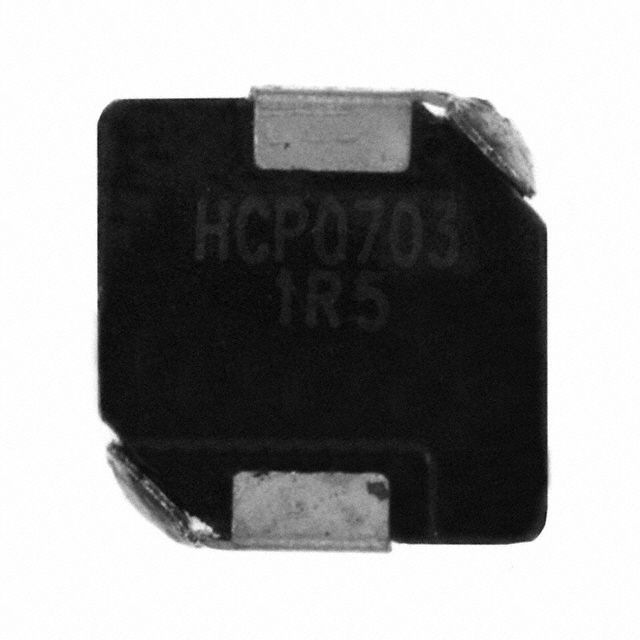

HCP0703-1R5-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HCP0703
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Iron Powder
1.5 µH
±20%
9 A
18A
Shielded
15mOhm Max
-
-
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
Nonstandard
-
0.287" L x 0.276" W (7.30mm x 7.00mm)
0.118" (3.00mm)

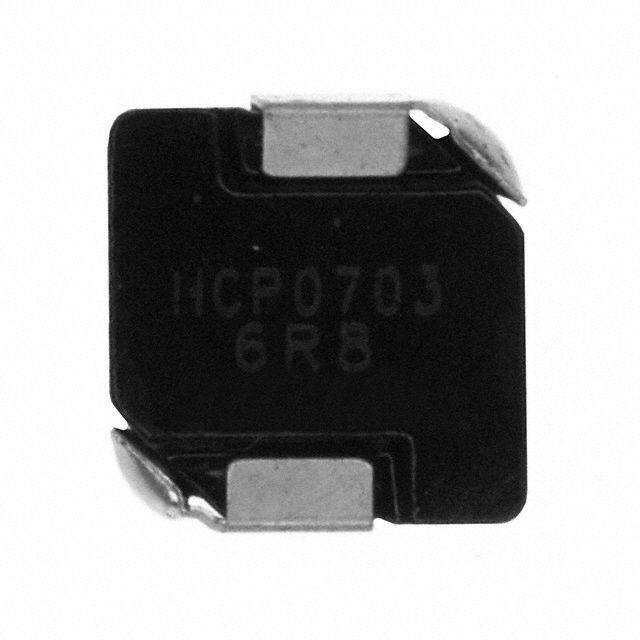

HCP0703-6R8-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HCP0703
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Iron Powder
6.8 µH
±20%
4.5 A
8A
Shielded
60mOhm Max
-
-
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
Nonstandard
-
0.287" L x 0.276" W (7.30mm x 7.00mm)
0.118" (3.00mm)

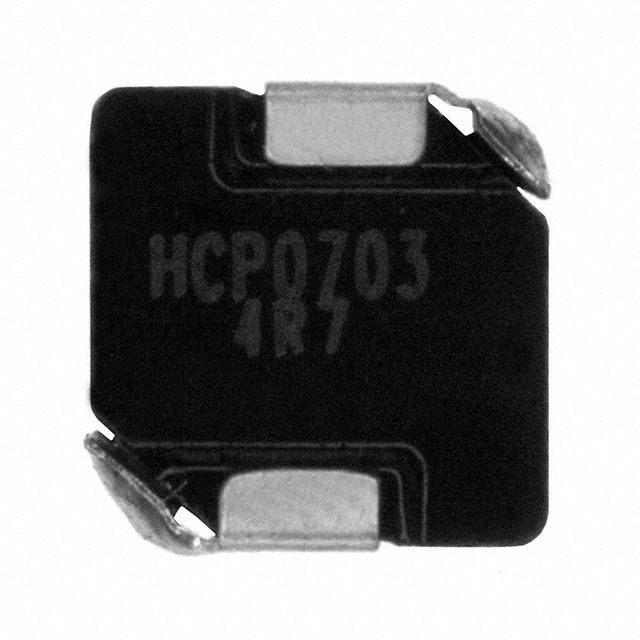

HCP0703-4R7-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HCP0703
Tape & Reel (TR)
Obsolete
Drum Core, Wirewound
Iron Powder
4.7 µH
±20%
5.5 A
10A
Shielded
40mOhm Max
-
-
-
-55°C ~ 125°C
100 kHz
-
Surface Mount
Nonstandard
-
0.287" L x 0.276" W (7.30mm x 7.00mm)
0.118" (3.00mm)

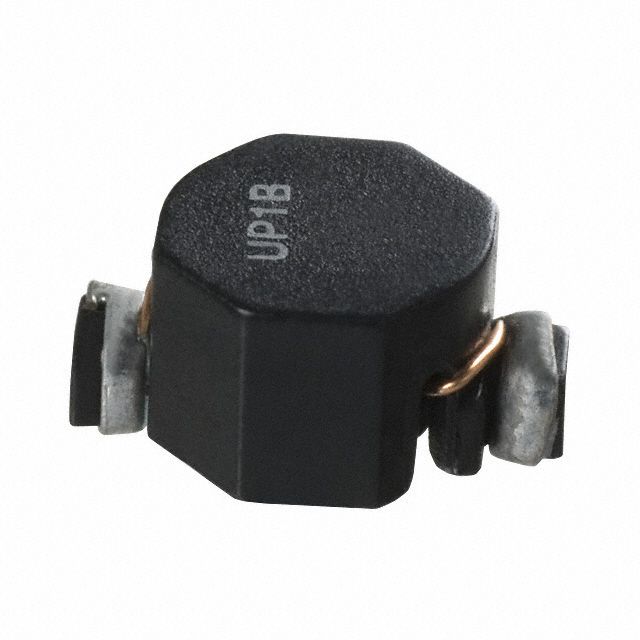

UP1B-470-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
UNI-PAC™
Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Active
Drum Core, Wirewound
Ferrite
47 µH
±20%
720 mA
870mA
Unshielded
474mOhm Max
-
-
-
-40°C ~ 85°C
100 kHz
-
Surface Mount
Nonstandard
-
0.350" L x 0.240" W (8.89mm x 6.10mm)
0.197" (5.00mm)

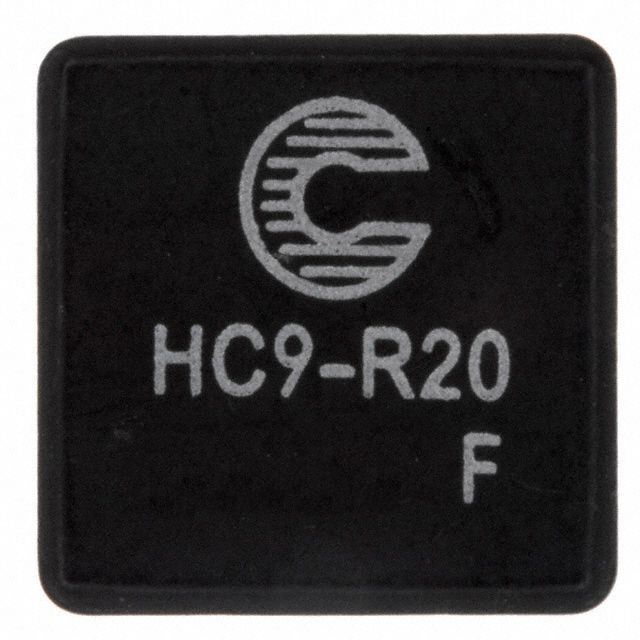

HC9-R20-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HC9
Tape & Reel (TR)
Active
Drum Core, Wirewound
Iron Powder
200 nH
±15%
46.7 A
95A
Unshielded
0.5mOhm Max
-
-
-
-40°C ~ 155°C
100 kHz
-
Surface Mount
Nonstandard
-
0.528" L x 0.516" W (13.40mm x 13.10mm)
0.295" (7.50mm)
HC8LP-3R5-R EATON - ELECTRONICS DIVISION
EATON - ELECTRONICS DIVISION
-
HC8LP
Tape & Reel (TR)
Active
Drum Core, Wirewound
Iron Powder
3.5 µH
±20%
6.9 A
11.4A
Unshielded
24.5mOhm Max
-
-
-
-40°C ~ 155°C
100 kHz
-
Surface Mount
Nonstandard
-
0.429" L x 0.409" W (10.90mm x 10.40mm)
0.138" (3.50mm)
...
