Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WR-CXASY | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |

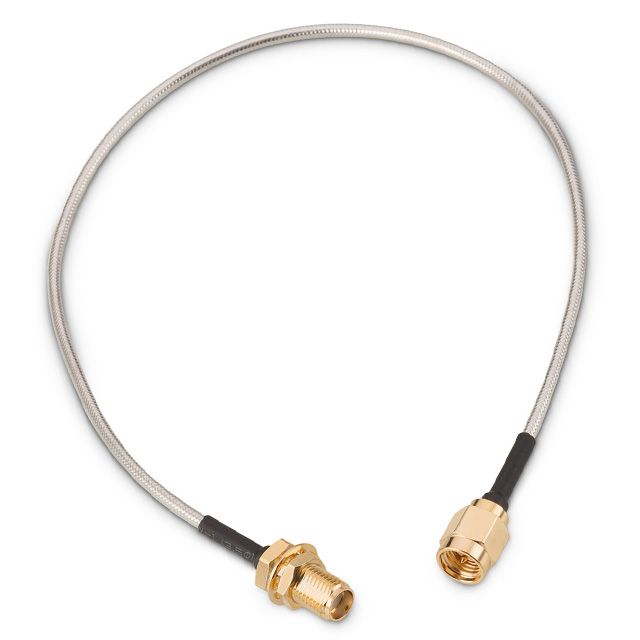

| Design Style Variant | SMA to SMA | |
| Primary Connector | SMA Jack | |
| Primary Contact Gender | Female | |
| Primary Connector Installation Type | Panel Mount | |
| Primary Connector Mount Style | Bulkhead - Front Side Nut | |
| Secondary Connector | SMA Plug | |
| Secondary Contact Gender | Male | |
| Secondary Connector Installation Type | Free Hanging (In-Line) | |
| Secondary Connector Mount Style | - | |
| Linear Length Dimension | 6.000" (152.40mm) | |
| Cord Construction Style | Hand Formable .085 | |
| Transmission Line Resistance | - | |
| Plug Resistance Level | - | |
| Total Circuit Impedance | 50 Ohms | |
| Upper Frequency Limit | 18 GHz | |
| Visual Hue | Silver | |
| Key Product Highlights | Shielded | |
| Ambient Temp Range | -65°C ~ 165°C | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Incorporates a primary connector designed to meet SMA Jack requirements. Offers a Bulkhead - Front Side Nut mounting style for firmly securing the primary connector. Adopts a Panel Mount installation technique to guarantee a strong connector setup. Configured with Female contact gender to facilitate effective interface interaction. Fitted with a secondary connector designed to SMA Plug standards. Utilizes a Free Hanging (In-Line) installation technique for dependable secondary connection. Specifies Male as the gender for the contact to ensure proper interface compatibility. Classified under cable type Hand Formable .085 for suitable use. Offered in a shade referred to as Silver to enhance the system's aesthetics. Equipped with features categorized as Shielded. Delivers a peak frequency of 18 GHz. Overall length 6.000" (152.40mm) for size indication. Temperature range -65°C ~ 165°C for environmental conditions impacting thermal efficiency. Overall impedance 50 Ohms for electrical integration. Type of housing Bag for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component WR-CXASY. Style variant SMA to SMA for design or arrangement.
