Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WR-CXASY | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |
| Design Style Variant | MCX to MCX | |
| Primary Connector | MCX Plug | |
| Primary Contact Gender | Male | |
| Primary Connector Installation Type | Free Hanging (In-Line) | |
| Primary Connector Mount Style | - | |
| Secondary Connector | MCX Socket | |
| Secondary Contact Gender | Female | |
| Secondary Connector Installation Type | Panel Mount | |
| Secondary Connector Mount Style | Bulkhead - Front Side Nut | |
| Linear Length Dimension | 6.000" (152.40mm) | |
| Cord Construction Style | RG-178 | |
| Transmission Line Resistance | 50 Ohms | |
| Plug Resistance Level | - | |
| Total Circuit Impedance | 50 Ohms | |
| Upper Frequency Limit | 3 GHz | |
| Visual Hue | Copper | |
| Key Product Highlights | Shielded | |
| Ambient Temp Range | -55°C ~ 155°C | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description

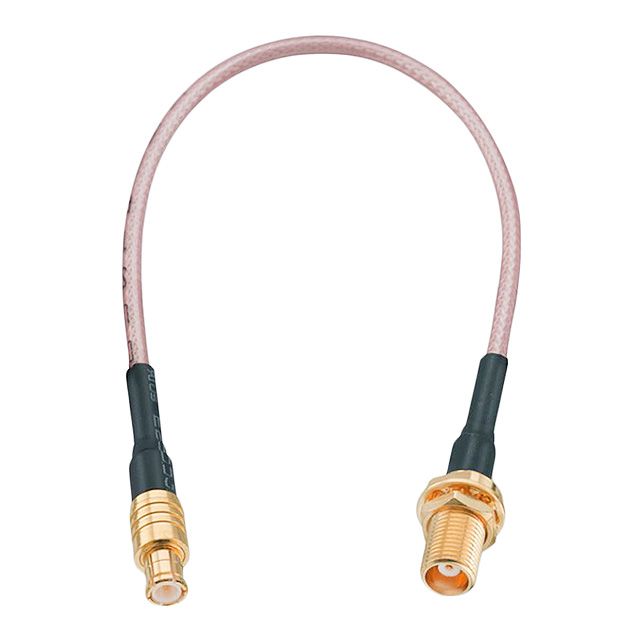

Incorporates a primary connector designed to meet MCX Plug requirements. Adopts a Free Hanging (In-Line) installation technique to guarantee a strong connector setup. Configured with Male contact gender to facilitate effective interface interaction. Fitted with a secondary connector designed to MCX Socket standards. Provides a Bulkhead - Front Side Nut mounting style for secure attachment of the secondary connector. Utilizes a Panel Mount installation technique for dependable secondary connection. Specifies Female as the gender for the contact to ensure proper interface compatibility. Defined by a cable impedance of 50 Ohms to maintain signal integrity. Classified under cable type RG-178 for suitable use. Offered in a shade referred to as Copper to enhance the system's aesthetics. Equipped with features categorized as Shielded. Delivers a peak frequency of 3 GHz. Overall length 6.000" (152.40mm) for size indication. Temperature range -55°C ~ 155°C for environmental conditions impacting thermal efficiency. Overall impedance 50 Ohms for electrical integration. Type of housing Bag for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component WR-CXASY. Style variant MCX to MCX for design or arrangement.
