Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DSC1033, PureSilicon™ | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Fundamental Oscillator | MEMS | |
| Device Type Classification | XO (Standard) | |
| Oscillation Rate Hz | 14.7456 MHz | |
| Primary Function Mode | Standby (Power Down) | |
| Signal Output Format | CMOS | |
| Power Supply Voltage | 3V ~ 3.6V | |
| Oscillator Drift Tolerance | ±50ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 3mA (Typ) | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |

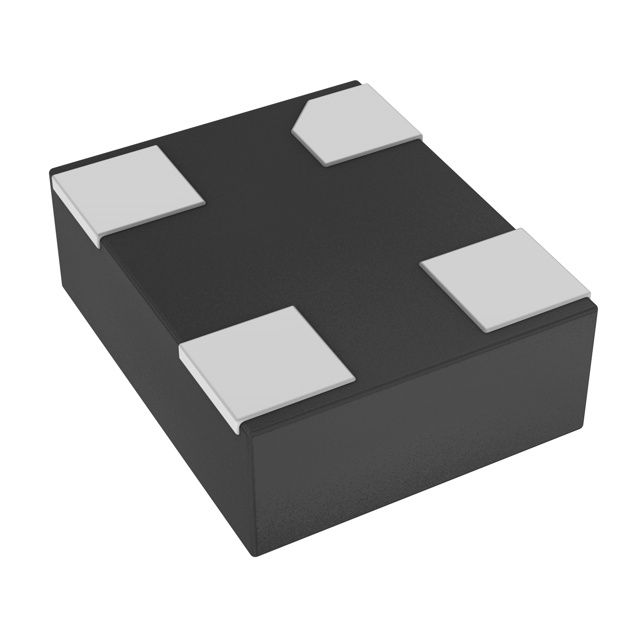

| Component Housing Style | 4-SMD, No Lead | |
| Vendor Package Type | - | |
| Package Size Specs | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Maximum Mounted Height | 0.035" (0.90mm) |
Description
Incorporates a MEMS base resonator to maintain stable frequency control. Manages the maximum supply current noted as 3mA (Typ). Runs at a frequency of 14.7456 MHz. Offers ±50ppm frequency consistency under various environmental conditions. Engineered with Standby (Power Down) features for versatile component usage. Maximum installed height of 0.035" (0.90mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Output format CMOS for electrical or signal communication. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 4-SMD, No Lead that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component DSC1033, PureSilicon™. Details on package size 0.098" L x 0.079" W (2.50mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.098" L x 0.079" W (2.50mm x 2.00mm) for component specifications. Voltage requirement 3V ~ 3.6V for electrical specifications. Type classification XO (Standard) for specifications. Voltage supply 3V ~ 3.6V for device operation.
