Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

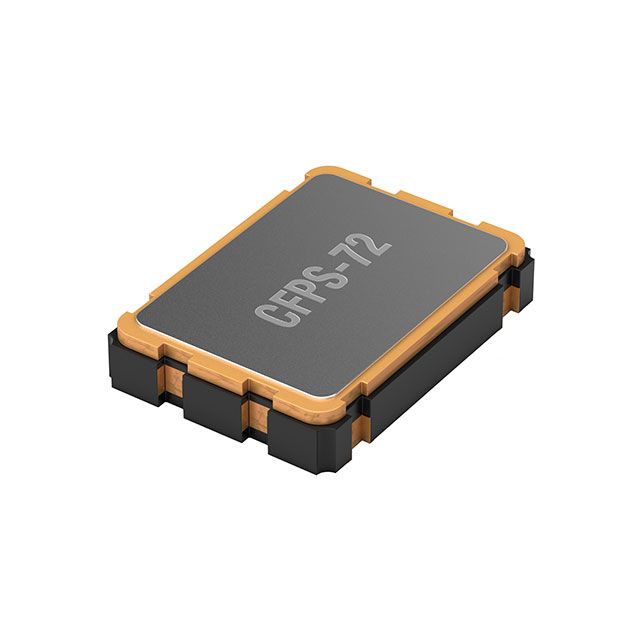

| Product Series Line | CFPS-72 | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Fundamental Oscillator | Crystal | |
| Device Type Classification | XO (Standard) | |
| Oscillation Rate Hz | 40 MHz | |
| Primary Function Mode | Standby (Power Down) | |
| Signal Output Format | HCMOS, TTL | |
| Power Supply Voltage | 5V | |
| Oscillator Drift Tolerance | ±50ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 50mA | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 4-SMD, No Lead | |
| Vendor Package Type | - | |
| Package Size Specs | 0.283" L x 0.205" W (7.20mm x 5.20mm) | |
| Maximum Mounted Height | 0.055" (1.40mm) |
Description
Incorporates a Crystal base resonator to maintain stable frequency control. Manages the maximum supply current noted as 50mA. Runs at a frequency of 40 MHz. Offers ±50ppm frequency consistency under various environmental conditions. Engineered with Standby (Power Down) features for versatile component usage. Maximum installed height of 0.055" (1.40mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Output format HCMOS, TTL for electrical or signal communication. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 4-SMD, No Lead that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component CFPS-72. Details on package size 0.283" L x 0.205" W (7.20mm x 5.20mm) for electrical or mechanical components. Measurement dimensions 0.283" L x 0.205" W (7.20mm x 5.20mm) for component specifications. Voltage requirement 5V for electrical specifications. Type classification XO (Standard) for specifications. Voltage supply 5V for device operation.
