Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 54.63000 | ₹ 5,463.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 80.99000 | ₹ 80.99 |
| 10 | ₹ 69.33000 | ₹ 693.30 |
| 50 | ₹ 62.57000 | ₹ 3,128.50 |
| 100 | ₹ 54.65000 | ₹ 5,465.00 |
| 250 | ₹ 53.49000 | ₹ 13,372.50 |
| 500 | ₹ 52.06000 | ₹ 26,030.00 |
| 1000 | ₹ 51.71000 | ₹ 51,710.00 |
| 2500 | ₹ 48.24000 | ₹ 1,20,600.00 |
| 5000 | ₹ 47.08000 | ₹ 2,35,400.00 |

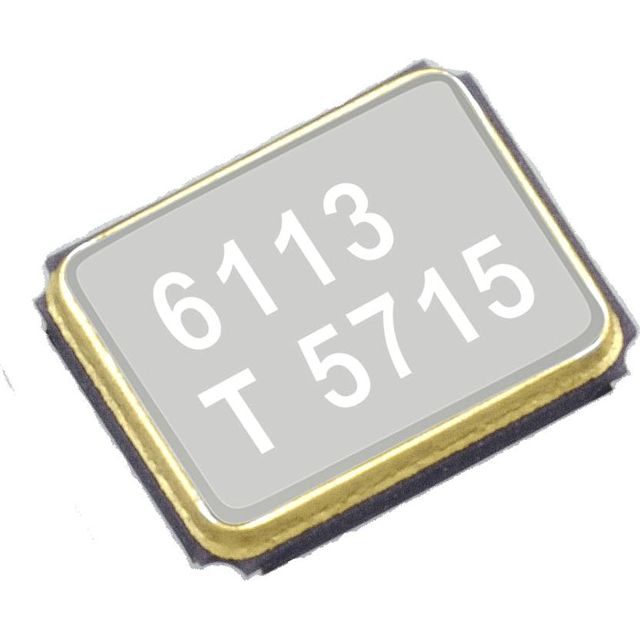

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TSX-3225 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | MHz Crystal | |
| Oscillation Rate Hz | 40 MHz | |
| Oscillator Drift Tolerance | ±20ppm | |
| Hz Deviation Limit | ±10ppm | |
| Output Load Cap Value | 12pF | |
| Series Resistance Equivalent | 40 Ohms | |
| Runtime Mode Selection | Fundamental | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 4-SMD, No Lead | |
| Vendor Package Type | 4-SMD (3.2x2.5) | |
| Package Size Specs | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Maximum Mounted Height | 0.024" (0.60mm) |
Description
Displays ESR rated at 40 Ohms. Runs at a frequency of 40 MHz. Offers ±20ppm frequency consistency under various environmental conditions. Provides ±10ppm frequency range for accurate electronic operations. Maximum installed height of 0.024" (0.60mm) for components affixed to the board. Load capacitance 12pF to maintain reliable electrical performance. Mounting configuration Surface Mount for structural stability. Selected operational mode Fundamental for system configuration. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 4-SMD, No Lead that offers mechanical and thermal protection. Type of package 4-SMD (3.2x2.5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component TSX-3225. Details on package size 0.126" L x 0.098" W (3.20mm x 2.50mm) for electrical or mechanical components. Measurement dimensions 0.126" L x 0.098" W (3.20mm x 2.50mm) for component specifications. Supplier package type 4-SMD (3.2x2.5) for component selection. Type classification MHz Crystal for specifications.
