Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Light Wavelength nm | 900nm | |
| Vivid Color Option | - | |
| Light Spectrum Coverage | - | |
| Semiconductor Diode Category | PIN | |
| Sensitivity at Wavelength | 0.55 A/W @ 800nm | |
| Activation Speed ms | 2ns | |
| Max Reverse DC Voltage | 30 V | |
| Typical Dark Current | 100pA | |
| Functional Surface Area | 0.739mm² | |
| Display View Cone Degrees | 140° | |
| Ambient Temp Range | -25°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

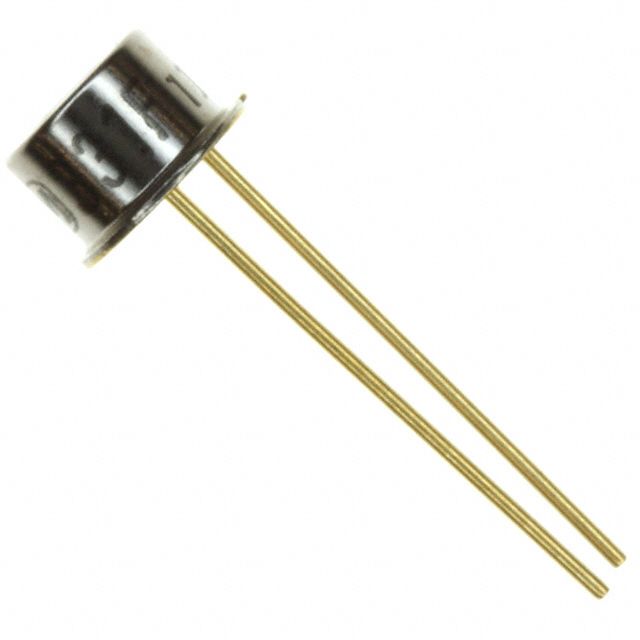

| Component Housing Style | TO-206AA, TO-18-3 Metal Can |
Description
Features an active display area of 0.739mm² for improved visibility. Shows a typical dark current recorded at 100pA. Shows the type of diode identified as PIN. Mounting configuration Through Hole for structural stability. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-206AA, TO-18-3 Metal Can that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Time taken to respond 2ns for rapid operation or detection. Sensitivity at wavelength 0.55 A/W @ 800nm for optical detection. Viewing angle 140° for monitors. Maximum reverse DC voltage 30 V for diode applications. Wavelength of light 900nm for RF or optical devices.
