Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 1,435.57000 | ₹ 7,17,785.00 |
| 375 | ₹ 1,464.94000 | ₹ 5,49,352.50 |
| 250 | ₹ 2,130.66000 | ₹ 5,32,665.00 |
| 125 | ₹ 4,037.04000 | ₹ 5,04,630.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 1,512.11000 | ₹ 7,56,055.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 1,546.31000 | ₹ 7,73,155.00 |
| 300 | ₹ 1,598.39000 | ₹ 4,79,517.00 |
| 100 | ₹ 1,716.14000 | ₹ 1,71,614.00 |
| 50 | ₹ 1,794.65000 | ₹ 89,732.50 |
| 25 | ₹ 1,876.61000 | ₹ 46,915.25 |
| 10 | ₹ 1,990.47000 | ₹ 19,904.70 |
| 1 | ₹ 2,306.47000 | ₹ 2,306.47 |

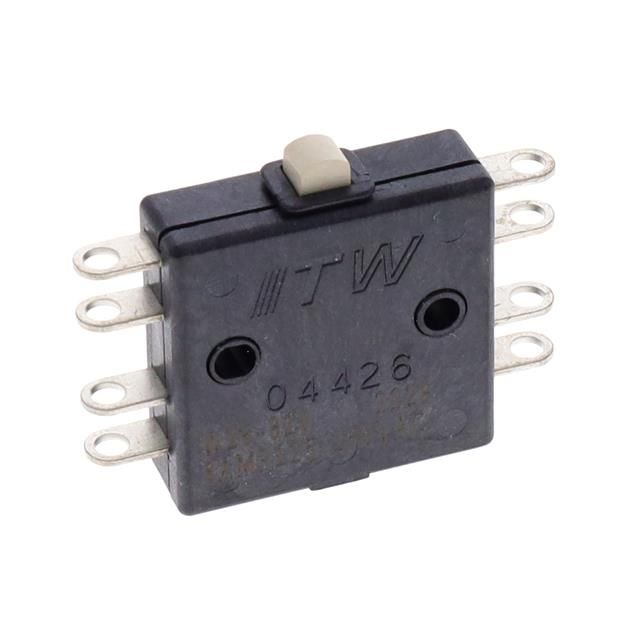

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | W26 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Electrical Pathway | DPDT (DB/DM) | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 6A (AC), 8A (DC) | |
| AC Voltage Max | 115 V | |
| DC Voltage Max | 28 V | |
| Activator Mechanism Type | Round (Pin Plunger) | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Solder Lug | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Activation Pressure Required | 510gf | |
| Detachment Pressure | 142gf | |
| Functional Position Setting | 0.394" (10.0mm) | |
| Initial Travel Distance | 0.060" (1.5mm) | |
| Switch Travel Difference | 0.025" (0.6mm) | |
| Excess Travel Distance | 0.020" (0.51mm) | |
| Physical Durability Cycles | - | |
| Cycle Durability Rating | - | |
| Ambient Temp Range | -65°C ~ 125°C |
Description
Incorporates a Round (Pin Plunger) actuator type to fulfill the desired function. Configured for circuit type described as DPDT (DB/DM). Sets the ampere rating to 6A (AC), 8A (DC). Offers a measurement of the differential travel at 0.025" (0.6mm). Mounting configuration Chassis Mount for structural stability. Pressure applied 510gf for ergonomic or mechanical operations. Position configuration 0.394" (10.0mm) for correct device alignment. Temperature range -65°C ~ 125°C for environmental conditions impacting thermal efficiency. Additional travel distance 0.020" (0.51mm) for mechanical safety and longevity. Type of housing Bulk for safeguarding or transporting components. Initial distance 0.060" (1.5mm) for mechanical control or switch activation. Product status Active concerning availability and lifecycle. Force needed 142gf to activate mechanical or electrical switches. Classification series for the product or component W26. Modification in operation mode On-On for electrical optimization. Type of termination Solder Lug for connector or device. The highest AC voltage specification 115 V for the device. The highest DC voltage specification 28 V for components.
