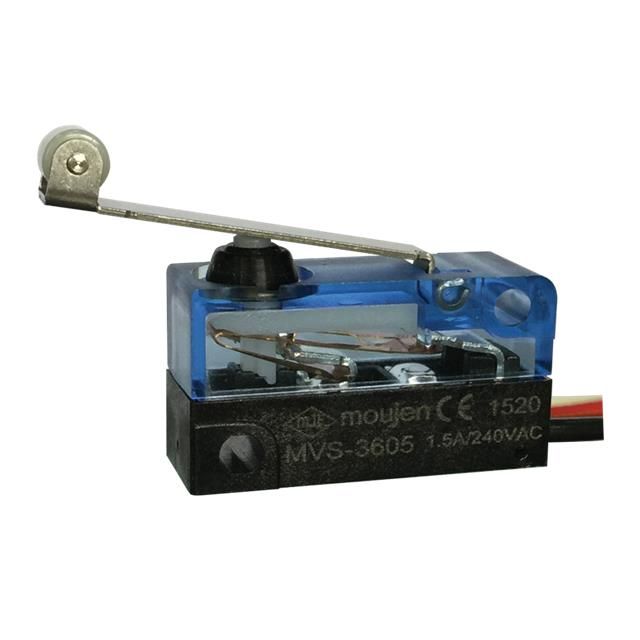

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MVS-36 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Mom | |
| Ampere Capacity Rating | 1.5 (AC), 500mA (DC) | |
| AC Voltage Max | 230 V | |
| DC Voltage Max | 60 V | |
| Activator Mechanism Type | Lever, Roller | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Cable Leads | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | - | |
| Activation Pressure Required | 74gf | |
| Detachment Pressure | 56gf | |
| Functional Position Setting | - | |
| Initial Travel Distance | 0.080" (2.0mm) | |
| Switch Travel Difference | 0.035" (0.9mm) | |
| Excess Travel Distance | 0.161" (4.1mm) | |
| Physical Durability Cycles | 5,000,000 Cycles | |
| Cycle Durability Rating | 50,000 Cycles | |
| Ambient Temp Range | -40°C ~ 80°C |
Description
Incorporates a Lever, Roller actuator type to fulfill the desired function. Configured for circuit type described as SPDT. Sets the ampere rating to 1.5 (AC), 500mA (DC). Offers a measurement of the differential travel at 0.035" (0.9mm). Indicates electrical lifespan evaluated at 50,000 Cycles. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mechanical strength 5,000,000 Cycles cycles for durability. Mounting configuration Chassis Mount for structural stability. Pressure applied 74gf for ergonomic or mechanical operations. Temperature range -40°C ~ 80°C for environmental conditions impacting thermal efficiency. Additional travel distance 0.161" (4.1mm) for mechanical safety and longevity. Type of housing Bulk for safeguarding or transporting components. Initial distance 0.080" (2.0mm) for mechanical control or switch activation. Product status Active concerning availability and lifecycle. Force needed 56gf to activate mechanical or electrical switches. Classification series for the product or component MVS-36. Modification in operation mode On-Mom for electrical optimization. Type of termination Cable Leads for connector or device. The highest AC voltage specification 230 V for the device. The highest DC voltage specification 60 V for components.
