Description

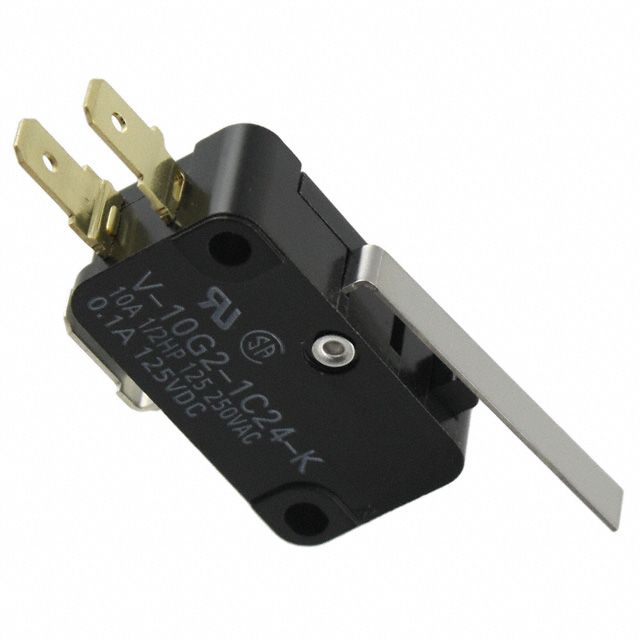

Incorporates a Lever, Straight actuator type to fulfill the desired function. Configured for circuit type described as SPDT. Sets the ampere rating to 10A (AC), 100mA (DC). Offers a measurement of the differential travel at 0.060" (1.5mm). Indicates electrical lifespan evaluated at 300,000 Cycles. Rated with IP IP40 to safeguard against dust and moisture penetration. Mechanical strength 50,000,000 Cycles cycles for durability. Mounting configuration Chassis Mount for structural stability. Pressure applied 60gf for ergonomic or mechanical operations. Position configuration 0.600" (15.2mm) for correct device alignment. Temperature range -25°C ~ 80°C for environmental conditions impacting thermal efficiency. Additional travel distance 0.062" (1.6mm) for mechanical safety and longevity. Type of housing Tray for safeguarding or transporting components. Initial distance 0.157" (4.0mm) for mechanical control or switch activation. Product status Active concerning availability and lifecycle. Force needed 6.118gf to activate mechanical or electrical switches. Classification series for the product or component V. Modification in operation mode On-Mom for electrical optimization. Type of termination Quick Connect - 0.187" (4.7mm) for connector or device. The highest AC voltage specification 250 V for the device. The highest DC voltage specification 125 V for components.
