Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 520 | ₹ 1,016.28000 | ₹ 5,28,465.60 |
| 280 | ₹ 1,057.85000 | ₹ 2,96,198.00 |
| 120 | ₹ 1,117.38000 | ₹ 1,34,085.60 |
| 80 | ₹ 1,146.99000 | ₹ 91,759.20 |
| 40 | ₹ 1,199.34000 | ₹ 47,973.60 |
| 10 | ₹ 1,311.06000 | ₹ 13,110.60 |
| 1 | ₹ 1,519.23000 | ₹ 1,519.23 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 120 | ₹ 1,291.39000 | ₹ 1,54,966.80 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,518.34000 | ₹ 1,518.34 |
| 10 | ₹ 1,311.86000 | ₹ 13,118.60 |
| 25 | ₹ 1,249.56000 | ₹ 31,239.00 |
| 40 | ₹ 1,146.32000 | ₹ 45,852.80 |
| 120 | ₹ 1,116.95000 | ₹ 1,34,034.00 |
| 280 | ₹ 1,057.32000 | ₹ 2,96,049.60 |
| 520 | ₹ 1,015.49000 | ₹ 5,28,054.80 |

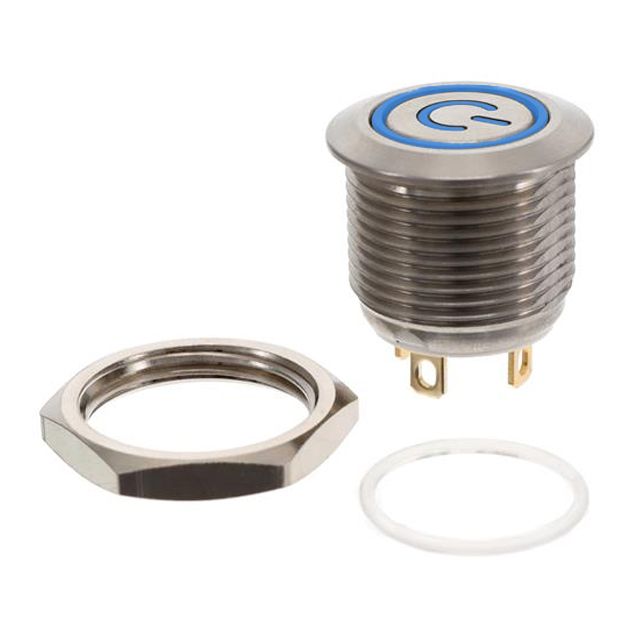

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PVA6 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount, Front | |
| Device Type Classification | Anti-Vandal, Illuminated | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Ampere Capacity Rating | 2A (DC) | |
| AC Voltage Max | - | |
| DC Voltage Max | 36 V | |
| Activator Mechanism Type | Round, Button, Flush | |
| Activator Label Indicator | Power Symbol | |
| Activator Cap Shade | Silver | |
| LED Illumination Shades | LED, Blue | |
| Standard Illumination Volts | 2.8 ~ 3.7 VDC | |
| Lead Termination Type | Solder Lug | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | - | |
| Mount Cutout Specs | Circular - 16.00mm Dia | |
| Ambient Temp Range | -20°C ~ 70°C |
Description
Features labels marked as Power Symbol for easy identification. Incorporates a Round, Button, Flush actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Made with an actuator or cap color labeled as Silver for visual differentiation. Sets the ampere rating to 2A (DC). Includes LED, Blue colored LEDs for effective signaling. Works at a standard voltage of 2.8 ~ 3.7 VDC for illumination. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Panel Mount, Front for structural stability. Temperature range -20°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Specifications of the cutout Circular - 16.00mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component PVA6. Modification in operation mode Off-Mom for electrical optimization. Type of termination Solder Lug for connector or device. Type classification Anti-Vandal, Illuminated for specifications. The highest DC voltage specification 36 V for components.
