Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 1,154.33000 | ₹ 11,54,330.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 1,157.13000 | ₹ 5,78,565.00 |
| 300 | ₹ 1,196.06000 | ₹ 3,58,818.00 |
| 100 | ₹ 1,284.08000 | ₹ 1,28,408.00 |
| 50 | ₹ 1,342.78000 | ₹ 67,139.00 |
| 25 | ₹ 1,404.04000 | ₹ 35,101.00 |
| 10 | ₹ 1,489.10000 | ₹ 14,891.00 |
| 1 | ₹ 1,725.83000 | ₹ 1,725.83 |
Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 1,634.75000 | ₹ 1,63,475.00 |

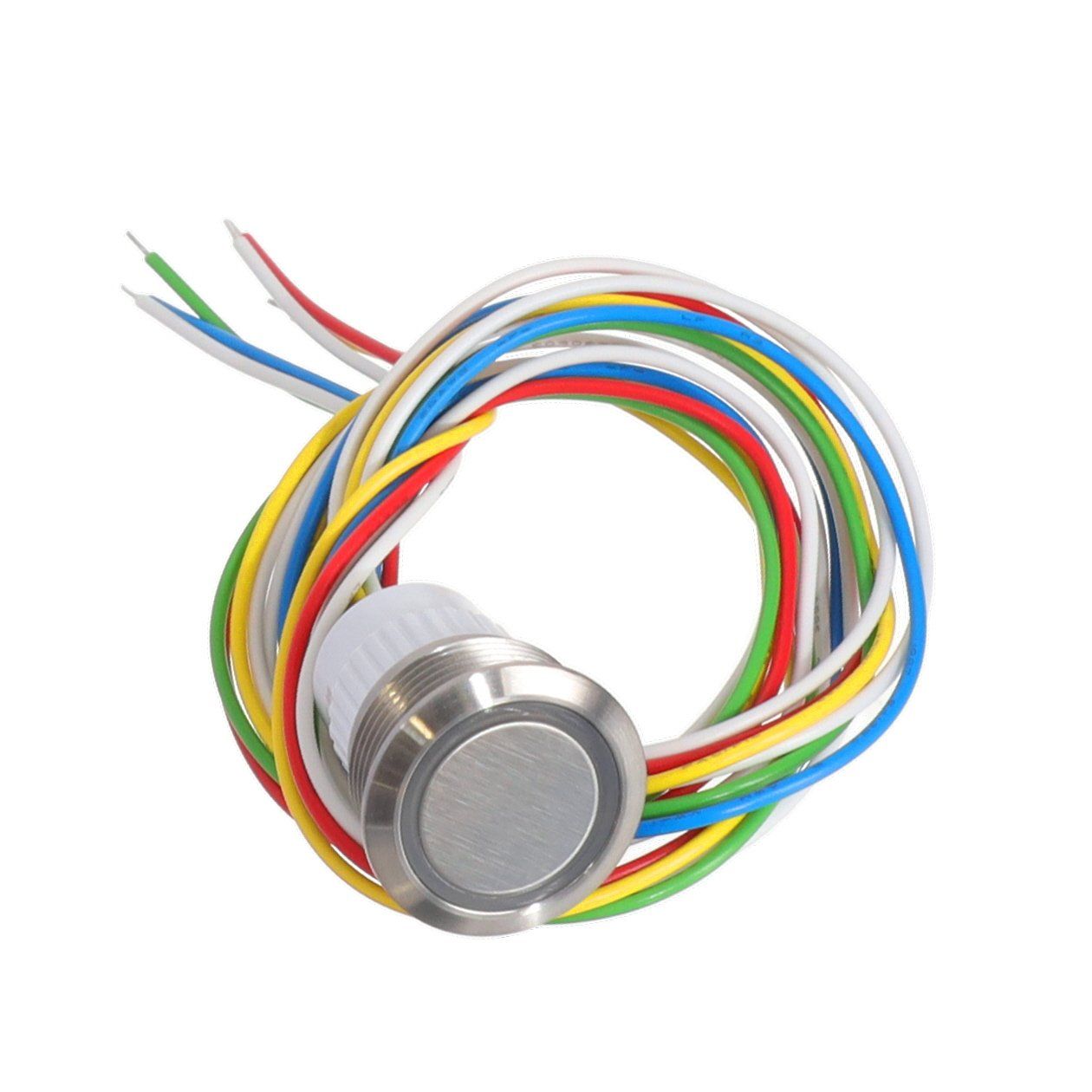

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WS48M | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount, Front | |
| Device Type Classification | Standard, Illuminated | |
| Electrical Pathway | SPST-NO (DM) | |
| Switch Operation Mode | Off-Mom | |
| Ampere Capacity Rating | 10mA (DC) | |
| AC Voltage Max | - | |
| DC Voltage Max | 12 V | |
| Activator Mechanism Type | Round, Button | |
| Activator Label Indicator | - | |
| Activator Cap Shade | Silver | |
| LED Illumination Shades | LED, Blue/Green/Red | |
| Standard Illumination Volts | 1.7, 2.6, 2.6 VDC | |
| Lead Termination Type | Wire Leads | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Key Product Highlights | - | |
| Mount Cutout Specs | Circular - 19.15mm Dia | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Incorporates a Round, Button actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO (DM). Made with an actuator or cap color labeled as Silver for visual differentiation. Sets the ampere rating to 10mA (DC). Includes LED, Blue/Green/Red colored LEDs for effective signaling. Works at a standard voltage of 1.7, 2.6, 2.6 VDC for illumination. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Panel Mount, Front for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 19.15mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component WS48M. Modification in operation mode Off-Mom for electrical optimization. Type of termination Wire Leads for connector or device. Type classification Standard, Illuminated for specifications. The highest DC voltage specification 12 V for components.
