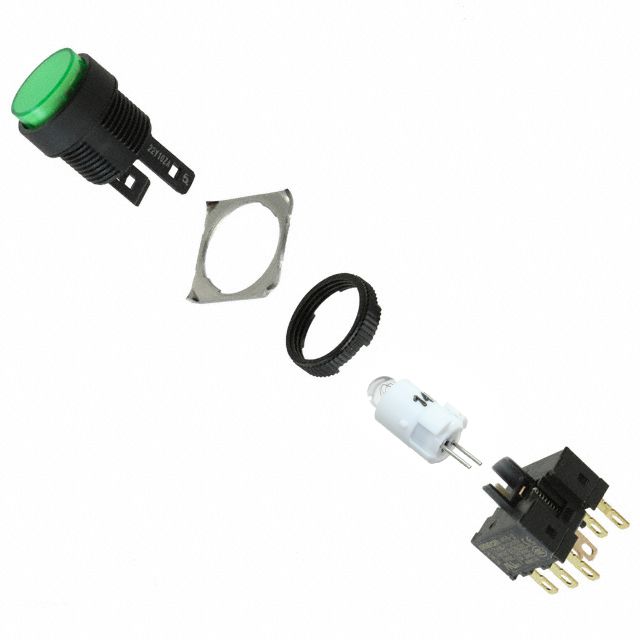

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | A16 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Panel Mount, Front | |
| Device Type Classification | Standard, Illuminated | |
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 5A (AC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Rectangular, Button | |
| Activator Label Indicator | No Marking | |
| Activator Cap Shade | Green | |
| LED Illumination Shades | Incandescent, Green | |
| Standard Illumination Volts | 12 VAC/DC | |
| Lead Termination Type | Solder, Quick Connect - 0.110" (2.8mm) | |
| Dust Water Resistance Rating | IP66 - Dust Tight, Oil and Water Resistant | |
| Key Product Highlights | - | |
| Mount Cutout Specs | Circular - 16.00mm Dia | |
| Ambient Temp Range | -10°C ~ 55°C |
Description
Features labels marked as No Marking for easy identification. Incorporates a Rectangular, Button actuator type to fulfill the desired function. Configured for circuit type described as DPDT. Made with an actuator or cap color labeled as Green for visual differentiation. Sets the ampere rating to 5A (AC). Includes Incandescent, Green colored LEDs for effective signaling. Works at a standard voltage of 12 VAC/DC for illumination. Rated with IP IP66 - Dust Tight, Oil and Water Resistant to safeguard against dust and moisture penetration. Mounting configuration Panel Mount, Front for structural stability. Temperature range -10°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 16.00mm Dia for accurate mounting. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component A16. Modification in operation mode On-On for electrical optimization. Type of termination Solder, Quick Connect - 0.110" (2.8mm) for connector or device. Type classification Standard, Illuminated for specifications. The highest AC voltage specification 125 V for the device.
