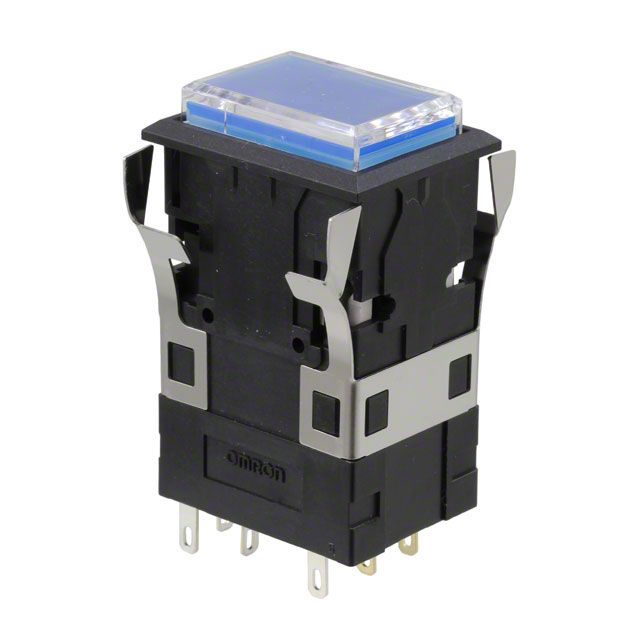

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | A3P | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Panel Mount, Snap-In | |
| Device Type Classification | Standard, Illuminated | |
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-On | |
| Ampere Capacity Rating | 5A (AC), 4A (DC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 30 V | |
| Activator Mechanism Type | Rectangular, Button | |
| Activator Label Indicator | No Marking | |
| Activator Cap Shade | Blue | |
| LED Illumination Shades | LED, Blue | |
| Standard Illumination Volts | 24 VAC/DC | |
| Lead Termination Type | Solder, Quick Connect - 0.110" (2.8mm) | |
| Dust Water Resistance Rating | IP40 | |
| Key Product Highlights | - | |
| Mount Cutout Specs | Rectangular - 30.50mm x 23.50mm | |
| Ambient Temp Range | -10°C ~ 40°C |
Description
Features labels marked as No Marking for easy identification. Incorporates a Rectangular, Button actuator type to fulfill the desired function. Configured for circuit type described as SPDT. Made with an actuator or cap color labeled as Blue for visual differentiation. Sets the ampere rating to 5A (AC), 4A (DC). Includes LED, Blue colored LEDs for effective signaling. Works at a standard voltage of 24 VAC/DC for illumination. Rated with IP IP40 to safeguard against dust and moisture penetration. Mounting configuration Panel Mount, Snap-In for structural stability. Temperature range -10°C ~ 40°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Rectangular - 30.50mm x 23.50mm for accurate mounting. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component A3P. Modification in operation mode On-On for electrical optimization. Type of termination Solder, Quick Connect - 0.110" (2.8mm) for connector or device. Type classification Standard, Illuminated for specifications. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 30 V for components.
