Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 5,535.69000 | ₹ 5,53,569.00 |
| 50 | ₹ 5,790.12000 | ₹ 2,89,506.00 |
| 25 | ₹ 6,055.72000 | ₹ 1,51,393.00 |
| 10 | ₹ 6,424.69000 | ₹ 64,246.90 |
| 1 | ₹ 7,449.29000 | ₹ 7,449.29 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 7,434.17000 | ₹ 7,434.17 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 9,439.34000 | ₹ 4,71,967.00 |
| 25 | ₹ 9,583.52000 | ₹ 2,39,588.00 |
| 15 | ₹ 9,728.59000 | ₹ 1,45,928.85 |
| 10 | ₹ 10,146.00000 | ₹ 1,01,460.00 |
| 5 | ₹ 10,599.90000 | ₹ 52,999.50 |
| 1 | ₹ 11,455.19000 | ₹ 11,455.19 |

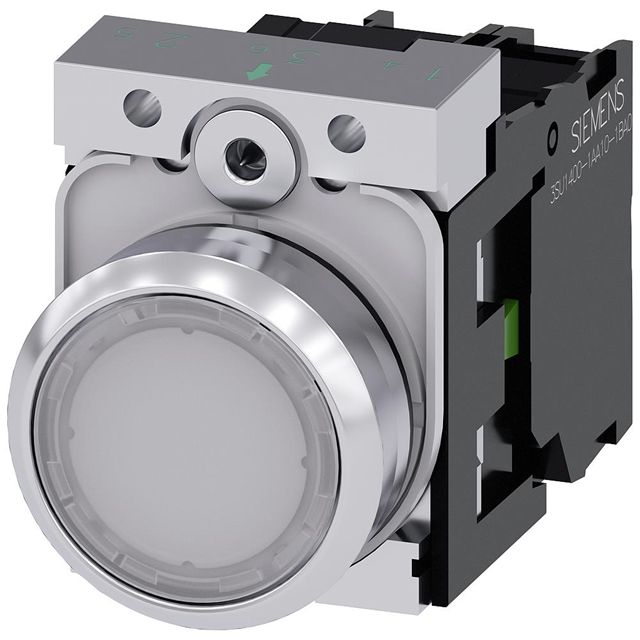

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 3SU1 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Panel Mount, Front | |
| Device Type Classification | Standard, Illuminated | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Ampere Capacity Rating | 10A (AC/DC) | |
| AC Voltage Max | 500 V | |
| DC Voltage Max | 500 V | |
| Activator Mechanism Type | Round, Button | |
| Activator Label Indicator | No Marking | |
| Activator Cap Shade | White | |
| LED Illumination Shades | LED, White | |
| Standard Illumination Volts | 24 VAC/DC | |
| Lead Termination Type | Screw Terminal | |
| Dust Water Resistance Rating | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | |
| Key Product Highlights | - | |
| Mount Cutout Specs | Circular - 22.30mm Dia | |
| Ambient Temp Range | -25°C ~ 70°C |
Description
Features labels marked as No Marking for easy identification. Incorporates a Round, Button actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Made with an actuator or cap color labeled as White for visual differentiation. Sets the ampere rating to 10A (AC/DC). Includes LED, White colored LEDs for effective signaling. Works at a standard voltage of 24 VAC/DC for illumination. Rated with IP IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Panel Mount, Front for structural stability. Temperature range -25°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 22.30mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component 3SU1. Modification in operation mode Off-Mom for electrical optimization. Type of termination Screw Terminal for connector or device. Type classification Standard, Illuminated for specifications. The highest AC voltage specification 500 V for the device. The highest DC voltage specification 500 V for components.
