Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 46.71000 | ₹ 2,80,260.00 |
| 4000 | ₹ 48.00000 | ₹ 1,92,000.00 |
| 2000 | ₹ 50.43000 | ₹ 1,00,860.00 |
| 500 | ₹ 56.15000 | ₹ 28,075.00 |
| 250 | ₹ 59.43000 | ₹ 14,857.50 |
| 100 | ₹ 64.15000 | ₹ 6,415.00 |
| 25 | ₹ 71.95000 | ₹ 1,798.75 |
| 10 | ₹ 77.39000 | ₹ 773.90 |
| 1 | ₹ 90.74000 | ₹ 90.74 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | RI-46 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

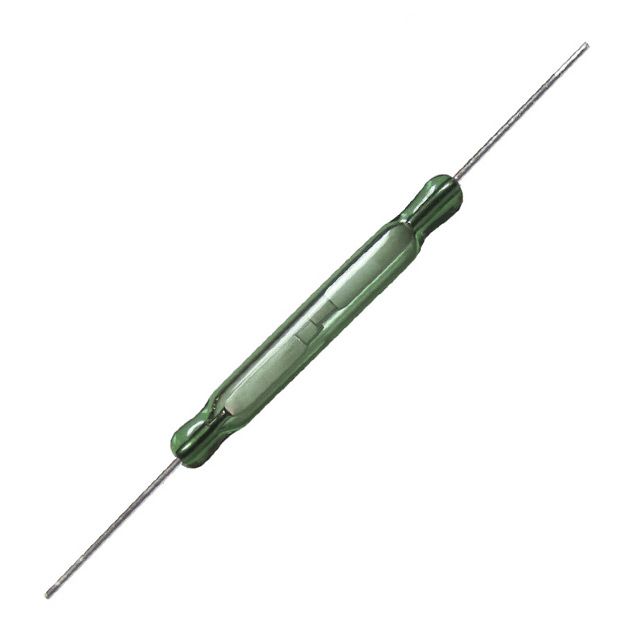

| Device Type Classification | Glass Body Reed | |
| Electrical Pathway | SPST-NO | |
| Functional Operating Range | 25 ~ 30AT | |
| Deactivation Range | - | |
| Switch Transition Amps | 1A (AC/DC) | |
| AC Switching Voltage | 250 V | |
| DC Switching Voltage | 200 V | |
| Nominal Power Rating | 40W | |
| Activation Response Time | 0.35 ms | |
| Reset Response Duration | 0.03 ms | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | Axial | |
| Full Overall Length | 2.157" (54.79mm) | |
| Main Body Dimensions | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | |
| PCB Clearance Height | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Storage Capacity Electrical | 0.2 pF | |
| Continuous Current Rating | 3A (DC) |
Description
Provides a capacitance level rated at 0.2 pF to maintain circuit stability. Configured for circuit type described as SPST-NO. Offers a current rating of 3A (DC). Operates with switching current characterized as 1A (AC/DC). The complete length 2.157" (54.79mm) for thorough dimensional reference. Mounting configuration Through Hole for structural stability. Operational range 25 ~ 30AT essential for device functionality. Time duration 0.35 ms for the response upon activation. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Energy requirement 40W for device functionality. Designated power 40W to meet compliance standards. Product status Active concerning availability and lifecycle. Duration required 0.03 ms for reset and reaction. Classification series for the product or component RI-46. Measurements of the main body 0.106" Dia x 0.807" L (2.70mm x 20.50mm) for compatibility with devices. Type of termination Axial for connector or device. Type classification Glass Body Reed for specifications. AC voltage employed for switching in circuits 250 V. DC voltage used for switching in circuits 200 V.
