Description

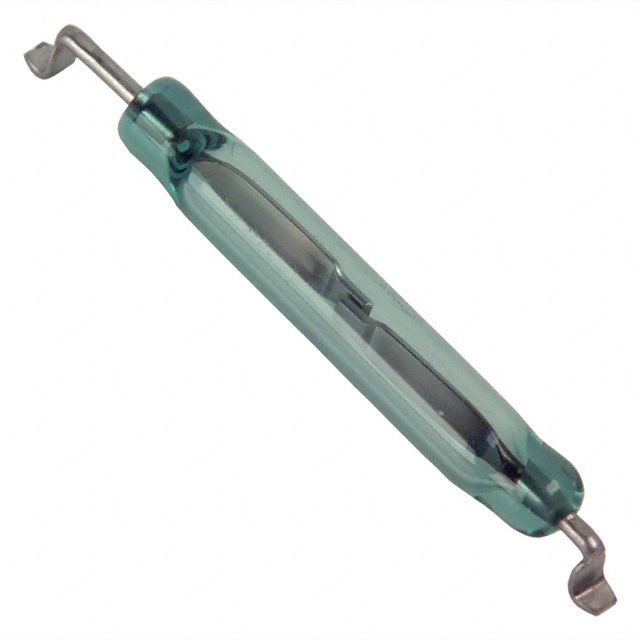

Provides a capacitance level rated at 0.2 pF to maintain circuit stability. Configured for circuit type described as SPST-NO. Offers a current rating of 1.2A (DC). Operates with switching current characterized as 350mA (AC), 500mA (DC). Maintains a height of 0.112" (2.85mm) above the board to accommodate assembly and clearance requirements. The complete length 0.760" (19.30mm) for thorough dimensional reference. Mounting configuration Surface Mount for structural stability. Operational range 12 ~ 18AT essential for device functionality. Time duration 0.6 ms for the response upon activation. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Energy requirement 10W for device functionality. Designated power 10W to meet compliance standards. Product status Active concerning availability and lifecycle. Duration required 0.2 ms for reset and reaction. Classification series for the product or component MDSM-4. Measurements of the main body 0.090" Dia x 0.600" L (2.28mm x 15.24mm) for compatibility with devices. Type of termination Gull Wing for connector or device. Type classification Glass Body Reed for specifications. AC voltage employed for switching in circuits 140 V. DC voltage used for switching in circuits 200 V.
