Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PRE | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Panel Mount, Snap-In | |
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-Off-On | |
| Ampere Capacity Rating | 10A (AC) | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Concave (Curved) | |
| Activator Cap Shade | Black | |
| Activator Label Indicator | - O = | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Lead Termination Type | Quick Connect - 0.187" (4.7mm) | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Mount Cutout Specs | Rectangular - 22.20mm x 19.40mm | |
| Ambient Temp Range | -20°C ~ 85°C | |
| Certification Body | cULus |

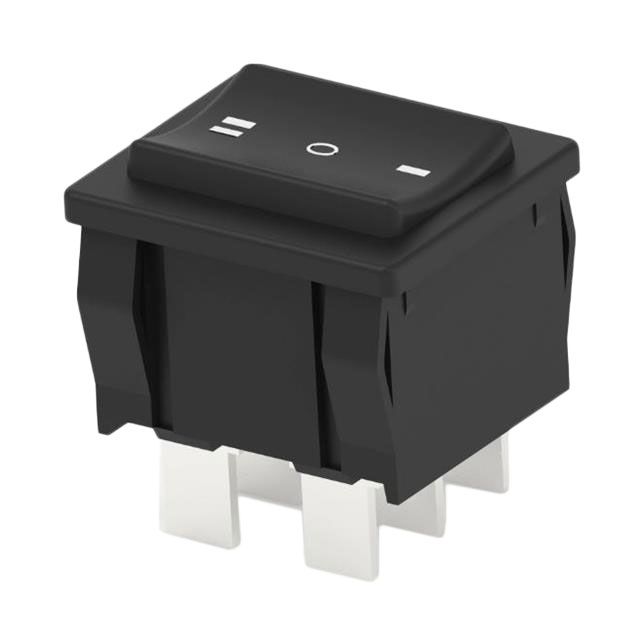

Description
Features labels marked as - O = for easy identification. Incorporates a Concave (Curved) actuator type to fulfill the desired function. Complies with the criteria of entities acknowledged as cULus. Configured for circuit type described as DPDT. Made with an actuator or cap color labeled as Black for visual differentiation. Sets the ampere rating to 10A (AC). Mounting configuration Panel Mount, Snap-In for structural stability. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Specifications of the cutout Rectangular - 22.20mm x 19.40mm for accurate mounting. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component PRE. Modification in operation mode On-Off-On for electrical optimization. Type of termination Quick Connect - 0.187" (4.7mm) for connector or device. The highest AC voltage specification 125 V for the device.
