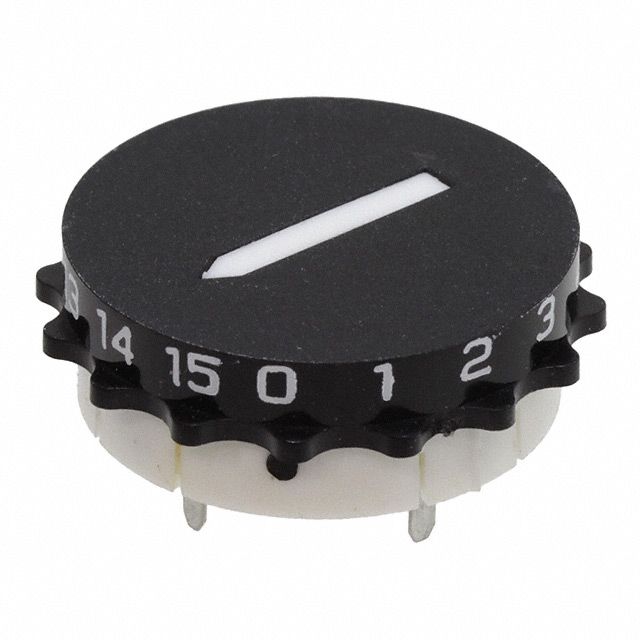

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 6000 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Switch Position Options | 16 | |
| Rotation Stop Positions | Continuous | |
| Switch Deck Layers | 1 | |
| Poles per Switch Layer | - | |
| Circuits per Layer | Hexadecimal | |
| Switch Activation Sequence | Non-Shorting (BBM) | |
| Ampere Capacity Rating | - | |
| AC Voltage Max | - | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Thumbwheel | |
| Activator Arm Length | Flush | |
| Switch Throw Angle | 15° | |
| Pin Alloy Composition | Phosphor Bronze | |
| Pin Surface Treatment | Gold | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Key Product Highlights | - | |
| Rear Panel Extension | - |
Description
Engineered with an actuator length of Flush to provide sufficient interaction range. Incorporates a Thumbwheel actuator type to fulfill the desired function. Delivers a throw angle of 15° for efficient switching operation. Features Hexadecimal circuits per layer in systems with multiple controls. Includes contact finish plated at Gold to improve conductivity. Constructed from the contact material known as Phosphor Bronze. Displays the contact timing characteristics defined as Non-Shorting (BBM). Equipped with Continuous index stops for precise positioning. Mounting configuration Through Hole for structural stability. Total decks 1 used in mechanical or card-based systems. Overall number of positions 16 for switches or mechanical components. Type of housing Tray for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 6000. Type of termination PC Pin for connector or device.
