Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | K | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | Standard | |
| Electrical Pathway | DPST-NO/NC | |
| Switch Position Options | 3 | |
| Switch Operation Mode | On-Off, Off-On | |
| Ampere Capacity Rating | 6A (AC), 3A (DC) | |
| AC Voltage Max | 250 V | |
| DC Voltage Max | 125 V | |
| Backlighting Feature | Illuminated | |
| LED Illumination Shades | LED, Yellow | |
| Standard Illumination Volts | 24 VDC | |
| Attachment Mounting Style | Panel Mount | |
| Lead Termination Type | Screw Terminal | |
| Mount Cutout Specs | Circular - 25.20mm Dia | |
| Dust Water Resistance Rating | IP65 - Dust Tight, Water Resistant | |
| Key Product Highlights | Bezel - Round, Yellow Knob | |
| Ambient Temp Range | -25°C ~ 50°C |

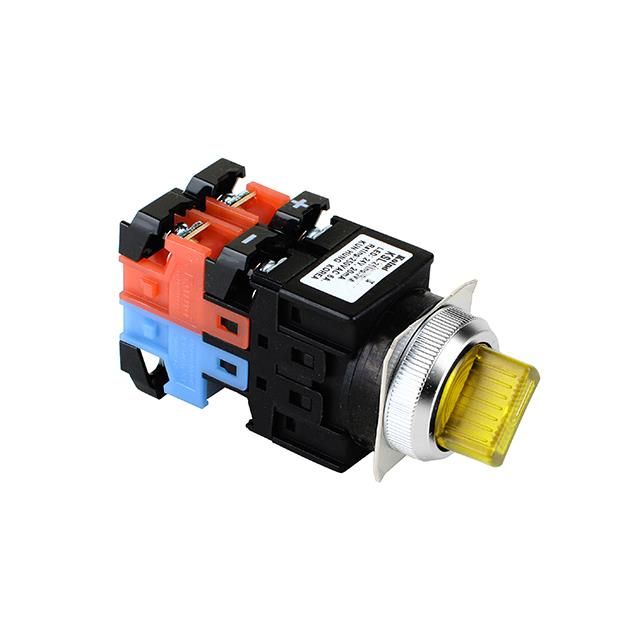

Description
Configured for circuit type described as DPST-NO/NC. Sets the ampere rating to 6A (AC), 3A (DC). Equipped with features categorized as Bezel - Round, Yellow Knob. Provides Illuminated brightness for improved visibility. Includes LED, Yellow colored LEDs for effective signaling. Works at a standard voltage of 24 VDC for illumination. Rated with IP IP65 - Dust Tight, Water Resistant to safeguard against dust and moisture penetration. Mounting configuration Panel Mount for structural stability. Overall number of positions 3 for switches or mechanical components. Temperature range -25°C ~ 50°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Specifications of the cutout Circular - 25.20mm Dia for accurate mounting. Product status Active concerning availability and lifecycle. Classification series for the product or component K. Modification in operation mode On-Off, Off-On for electrical optimization. Type of termination Screw Terminal for connector or device. Type classification Standard for specifications. The highest AC voltage specification 250 V for the device. The highest DC voltage specification 125 V for components.
