Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 6.38000 | ₹ 6,38,000.00 |
| 50000 | ₹ 6.66000 | ₹ 3,33,000.00 |
| 25000 | ₹ 6.97000 | ₹ 1,74,250.00 |
| 10000 | ₹ 7.38000 | ₹ 73,800.00 |
| 7000 | ₹ 7.55000 | ₹ 52,850.00 |
| 5000 | ₹ 7.71000 | ₹ 38,550.00 |
| 3000 | ₹ 7.97000 | ₹ 23,910.00 |
| 2000 | ₹ 8.17000 | ₹ 16,340.00 |
| 1000 | ₹ 8.54000 | ₹ 8,540.00 |
| 500 | ₹ 9.06000 | ₹ 4,530.00 |
| 250 | ₹ 9.60000 | ₹ 2,400.00 |
| 100 | ₹ 10.35000 | ₹ 1,035.00 |
| 25 | ₹ 11.49000 | ₹ 287.25 |
| 10 | ₹ 12.22000 | ₹ 122.20 |
| 1 | ₹ 14.27000 | ₹ 14.27 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CR1102H | |

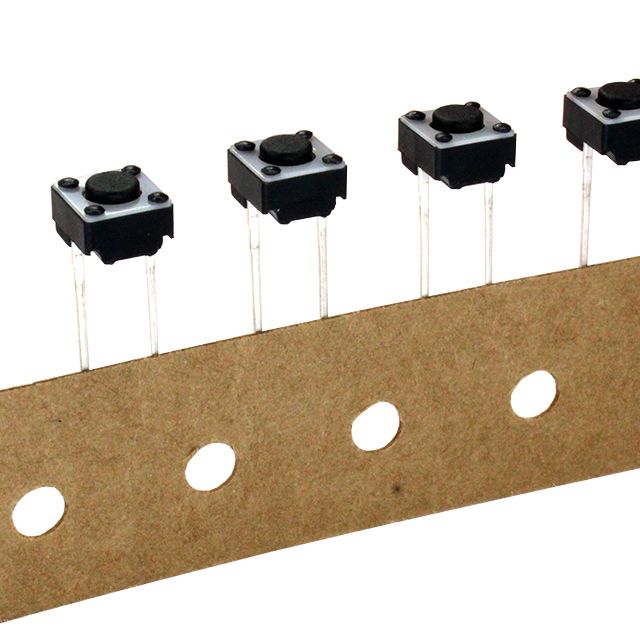

| IC Encapsulation Type | Cut Tape (CT)Tape & Box (TB) | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 50VDC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Through Hole | |
| Vertical Activator PCB Height | 4.30mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | PC Pin | |
| Dimensional Outline Drawing | 6.20mm x 6.20mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 260gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Rises 4.30mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 50VDC. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Through Hole for structural stability. Pressure applied 260gf for ergonomic or mechanical operations. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 6.20mm x 6.20mm for device design and footprint. Type of housing Cut Tape (CT)Tape & Box (TB) for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component CR1102H. Modification in operation mode Off-Mom for electrical optimization. Type of termination PC Pin for connector or device.
