Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 5.97000 | ₹ 5,97,000.00 |
| 50000 | ₹ 6.24000 | ₹ 3,12,000.00 |
| 25000 | ₹ 6.52000 | ₹ 1,63,000.00 |
| 10000 | ₹ 6.91000 | ₹ 69,100.00 |
| 7000 | ₹ 7.07000 | ₹ 49,490.00 |
| 5000 | ₹ 7.22000 | ₹ 36,100.00 |
| 3000 | ₹ 7.45000 | ₹ 22,350.00 |
| 2000 | ₹ 7.65000 | ₹ 15,300.00 |
| 1000 | ₹ 7.99000 | ₹ 7,990.00 |
| 500 | ₹ 8.51000 | ₹ 4,255.00 |
| 250 | ₹ 9.01000 | ₹ 2,252.50 |
| 100 | ₹ 9.70000 | ₹ 970.00 |
| 25 | ₹ 10.77000 | ₹ 269.25 |
| 10 | ₹ 11.50000 | ₹ 115.00 |
| 1 | ₹ 13.38000 | ₹ 13.38 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CR1102H | |
| IC Encapsulation Type | Cut Tape (CT)Tape & Box (TB) | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 50VDC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Through Hole | |
| Vertical Activator PCB Height | 7.30mm | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | PC Pin | |
| Dimensional Outline Drawing | 6.20mm x 6.20mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 160gf | |
| Dust Water Resistance Rating | - | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C |
Description

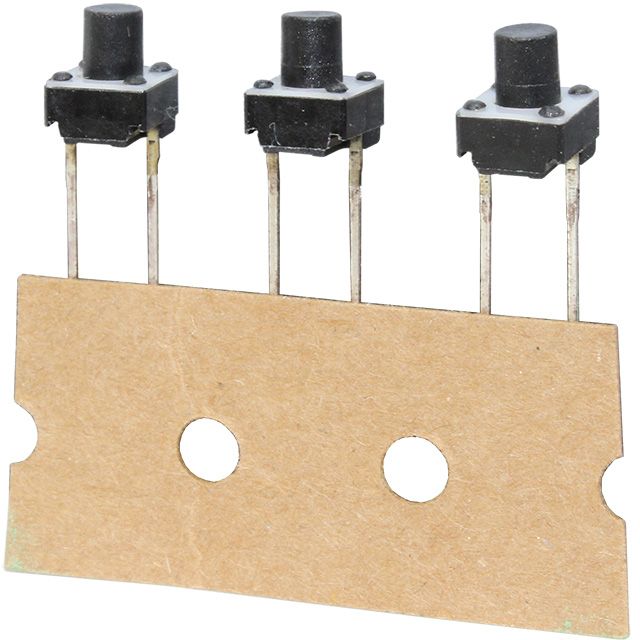

Rises 7.30mm vertically above the PCB. Aligned with Top Actuated actuator orientation for precise placement. Incorporates a Standard actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 50VDC. Provides Non-Illuminated brightness for improved visibility. Mounting configuration Through Hole for structural stability. Pressure applied 160gf for ergonomic or mechanical operations. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Shape outline 6.20mm x 6.20mm for device design and footprint. Type of housing Cut Tape (CT)Tape & Box (TB) for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component CR1102H. Modification in operation mode Off-Mom for electrical optimization. Type of termination PC Pin for connector or device.
