Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 42.72000 | ₹ 42,720.00 |
| 500 | ₹ 42.94000 | ₹ 21,470.00 |
| 250 | ₹ 43.16000 | ₹ 10,790.00 |
| 100 | ₹ 43.40000 | ₹ 4,340.00 |
| 25 | ₹ 43.62000 | ₹ 1,090.50 |
| 10 | ₹ 43.84000 | ₹ 438.40 |
| 1 | ₹ 44.06000 | ₹ 44.06 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 42.72000 | ₹ 42,720.00 |
| 500 | ₹ 42.94000 | ₹ 21,470.00 |
| 250 | ₹ 43.16000 | ₹ 10,790.00 |
| 100 | ₹ 43.40000 | ₹ 4,340.00 |
| 25 | ₹ 43.62000 | ₹ 1,090.50 |
| 13 | ₹ 43.84000 | ₹ 569.92 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 57.85000 | ₹ 57.85 |
| 10 | ₹ 49.57000 | ₹ 495.70 |
| 25 | ₹ 49.13000 | ₹ 1,228.25 |
| 100 | ₹ 48.95000 | ₹ 4,895.00 |
| 500 | ₹ 47.70000 | ₹ 23,850.00 |
| 1000 | ₹ 47.62000 | ₹ 47,620.00 |

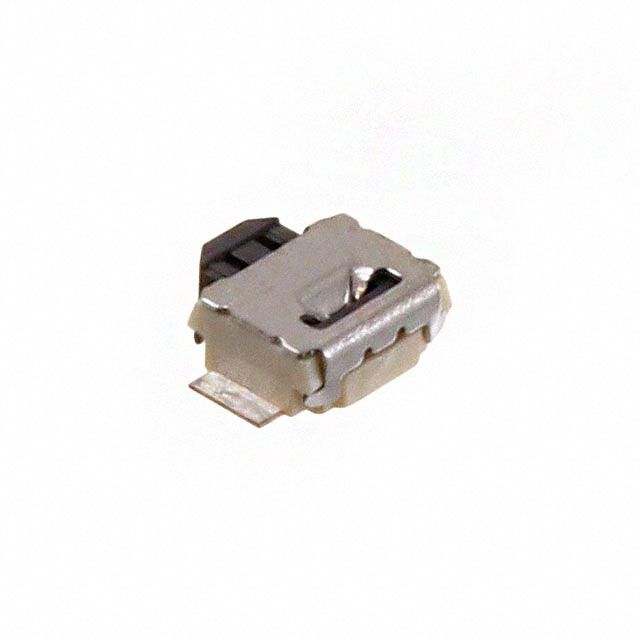

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | B3U | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 0.05A @ 12VDC | |
| Activator Mechanism Type | Rectangular Button | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Vertical Activator PCB Height | - | |
| Right-Angle Activator Length | - | |
| Activator Alignment Direction | Side Actuated | |
| Lead Termination Type | SMD (SMT) Tab | |
| Dimensional Outline Drawing | 4.00mm x 2.50mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Activation Pressure Required | 162gf | |
| Dust Water Resistance Rating | Dust Proof | |
| Key Product Highlights | - | |
| Ambient Temp Range | -25°C ~ 70°C |
Description
Aligned with Side Actuated actuator orientation for precise placement. Incorporates a Rectangular Button actuator type to fulfill the desired function. Configured for circuit type described as SPST-NO. Offers a contact rating at the voltage level of 0.05A @ 12VDC. Provides Non-Illuminated brightness for improved visibility. Rated with IP Dust Proof to safeguard against dust and moisture penetration. Mounting configuration Surface Mount, Right Angle for structural stability. Pressure applied 162gf for ergonomic or mechanical operations. Temperature range -25°C ~ 70°C for environmental conditions impacting thermal efficiency. Shape outline 4.00mm x 2.50mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component B3U. Modification in operation mode Off-Mom for electrical optimization. Type of termination SMD (SMT) Tab for connector or device.
